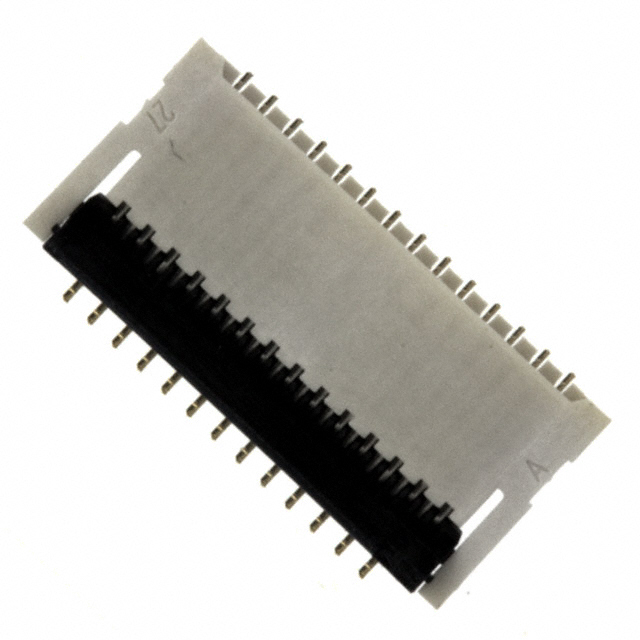

XF2B-2745-31A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2B-2745-31A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2B-2745-31A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2B-2745-31A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC 27POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.087 | $1.043 | $0.956 | $0.912 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.869 | $0.76 | $0.738 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2B-2745-31A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 27POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48776 pcs | Data sheet | XF2B Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2B |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | *XF2B-2745-31A OR773CT |
Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 27 | Mounting Type | Surface Mount, Right Angle |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Rotary Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.083" (2.10mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 27 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Straight | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
