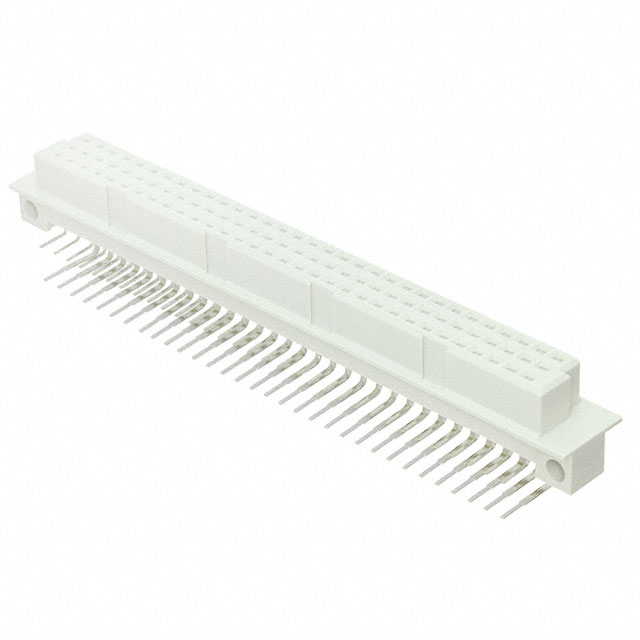

XC5H-6422
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XC5H-6422 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XC5H-6422 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XC5H-6422 |
|---|---|
| Manufacturer | Omron |
| Description | DIN CONNECTOR 64 POS TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $2.685 | $2.569 | $2.336 | $2.219 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $2.161 | $1.927 | $1.81 | $1.687 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XC5H-6422 | Manufacturer | Omron |
|---|---|---|---|
| Description | DIN CONNECTOR 64 POS TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22526 pcs | Data sheet | XC5B Series Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Style | R | Series | XC5 |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | XC5H-6422-ND XC5H6422 Z8716 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 64 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 2A | Contact Finish Thickness | 16.0µin (0.41µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
