XC5F-2022

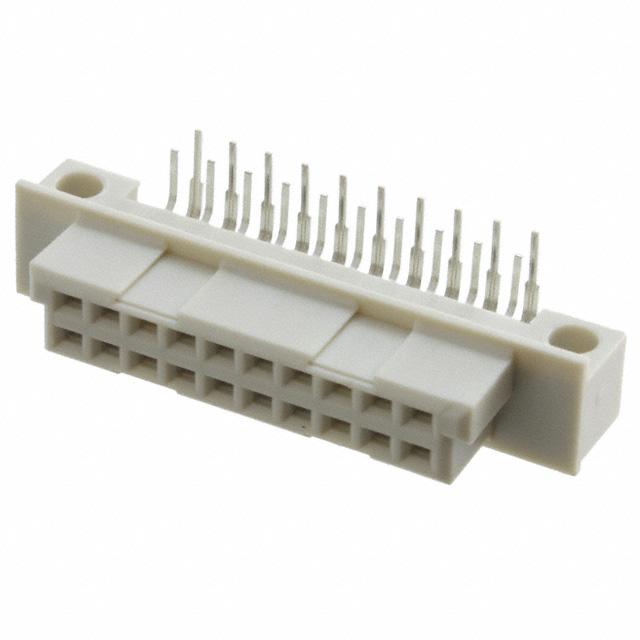

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XC5F-2022 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XC5F-2022 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XC5F-2022 |
|---|---|
| Manufacturer | Omron |
| Description | CONNECTOR 20POS RT-ANGL TERM DIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | 160 pcs |
|---|---|---|---|---|---|
| $1.292 | $1.242 | $1.138 | $1.086 | $1.035 | |
| 320 pcs | 560 pcs | 1040 pcs | 2560 pcs | ||
| $0.905 | $0.88 | $0.75 | $0.747 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XC5F-2022 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONNECTOR 20POS RT-ANGL TERM DIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42099 pcs | Data sheet | XC5B Series Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Style | Q | Series | XC5 |
| Pitch | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | OR1102 XC5F2022 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 2A | Contact Finish Thickness | 16.0µin (0.41µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
