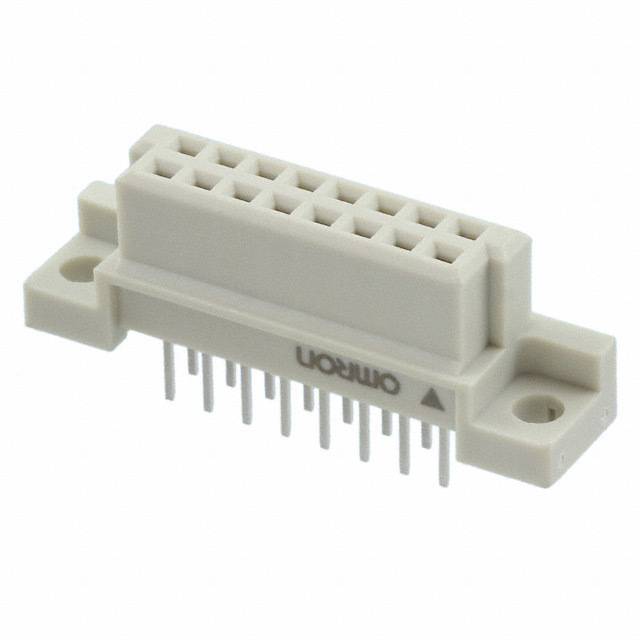

XC5B-1631-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XC5B-1631-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XC5B-1631-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XC5B-1631-3 |
|---|---|
| Manufacturer | Omron |
| Description | DIN CONNECTOR 16 POS TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 90 pcs | 180 pcs |
|---|---|---|---|---|---|
| $0.958 | $0.92 | $0.843 | $0.805 | $0.767 | |
| 270 pcs | 540 pcs | 1080 pcs | 2520 pcs | ||
| $0.671 | $0.652 | $0.556 | $0.554 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XC5B-1631-3 | Manufacturer | Omron |
|---|---|---|---|
| Description | DIN CONNECTOR 16 POS TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54551 pcs | Data sheet | XC5B Series Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Style | B | Series | XC5 |
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | XC5B-1631-3-ND XC5B16313 Z6547 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 2A | Contact Finish Thickness | 16.0µin (0.41µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
