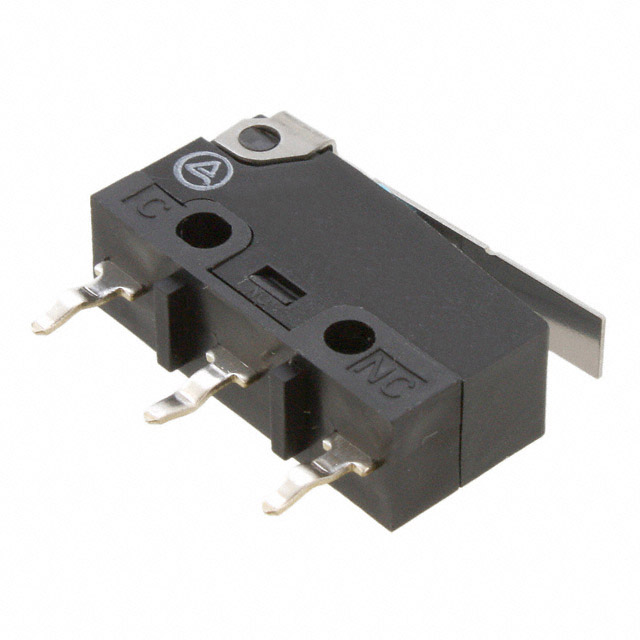

SSG-5L1P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSG-5L1P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSG-5L1P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSG-5L1P |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACTION SPDT 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.034 | $0.954 | $0.895 | $0.875 | $0.696 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.656 | $0.616 | $0.577 | $0.537 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSG-5L1P | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68899 pcs | Data sheet | SSG Series |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | SSG |
| Release Force | 6.118gf | Pretravel | - |
| Packaging | Bulk | Overtravel | 0.040" (1.0mm) |
| Other Names | SS5N6008M SSG-5L1P BY OMZ SSG-5L1P-ND SSG5L1P SSG5L1P1 SSG5L1PBYOMZ SW1407 |
Operating Temperature | -25°C ~ 125°C |
| Operating Position | 0.480" (12.2mm) | Operating Force | 61gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 10,000,000 Cycles | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP40 |
| Features | - | Electrical Life | 200,000 Cycles |
| Differential Travel | 0.031" (0.8mm) | Current Rating | 5A (AC), 4A (DC) |
| Circuit | SPDT | Actuator Type | Lever, Straight |
