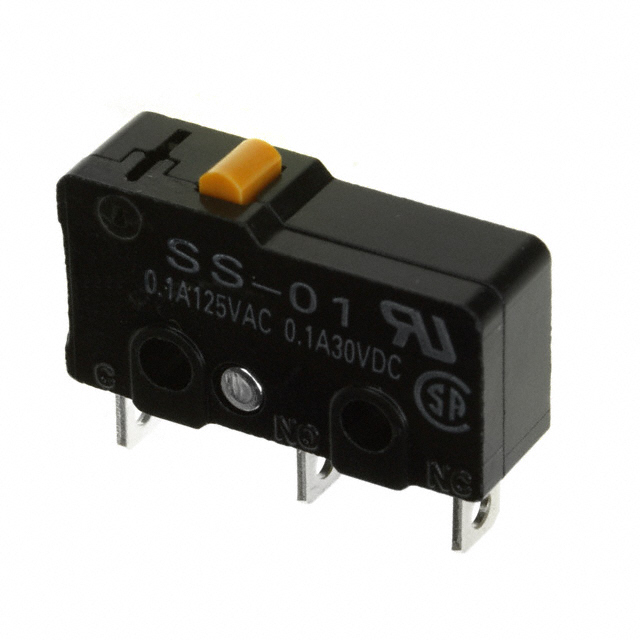

SS-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SS-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SS-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SS-01 |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.275 | $1.176 | $1.102 | $1.078 | $0.857 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.808 | $0.759 | $0.71 | $0.661 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SS-01 | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACT SPDT 100MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52149 pcs | Data sheet | SS Snap Action Switch Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | SS |
| Release Force | 25gf | Pretravel | 0.020" (0.5mm) |
| Packaging | Bulk | Overtravel | 0.020" (0.5mm) |
| Other Names | SS-01-ND SS01 SW1059 |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.330" (8.4mm) | Operating Force | 150gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 30,000,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP40 | Features | - |
| Electrical Life | 200,000 Cycles | Differential Travel | 0.004" (0.1mm) |
| Current Rating | 100mA (AC/DC) | Circuit | SPDT |
| Actuator Type | Round (Pin Plunger) |
