Home > Products > Relays > Power Relays, Over 2 Amps > G7L-2A-X-L DC24

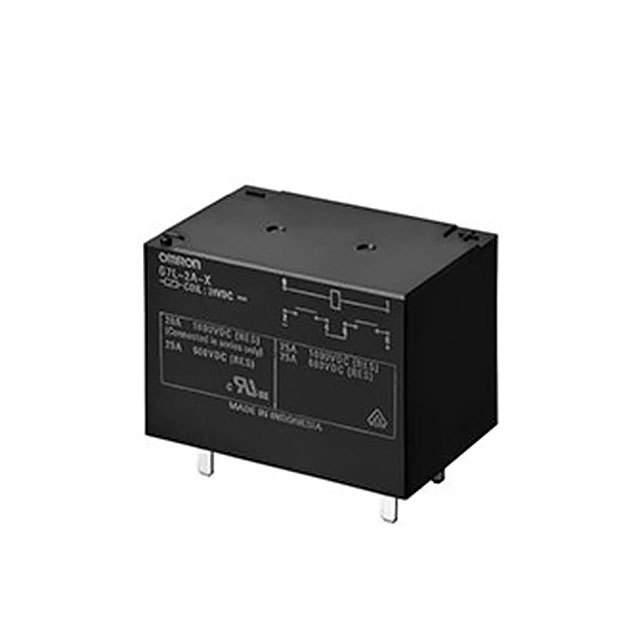

G7L-2A-X-L DC24

G7L-2A-X-L DC24

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G7L-2A-X-L DC24 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	G7L-2A-X-L DC24
Manufacturer	Omron
Description	RELAY GEN PURPOSE DPST 20A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1233 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$30.65	$29.038	$27.424	$25.811	$24.198

Product parameter
Data sheet

Product parameter

Part Number	G7L-2A-X-L DC24	Manufacturer	Omron
Description	RELAY GEN PURPOSE DPST 20A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1233 pcs	Data sheet	G7L-X
Category	Relays	Turn On Voltage (Max)	18 VDC
Turn Off Voltage (Min)	2.4 VDC	Termination Style	PC Pin
Switching Voltage	1000VDC - Max	Series	G7L-X
Release Time	30ms	Relay Type	General Purpose
Packaging	Tray	Other Names	G7L-2A-X-L DC24BYOMI G7L2AXLDC24 G7L2AXLDC24BYOMI Z6084
Operating Temperature	-40°C ~ 85°C	Operate Time	30ms
Mounting Type	Through Hole	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Flux Protection
Detailed Description	General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole	Contact Rating (Current)	20A
Contact Material	Silver Alloy	Contact Form	DPST-NO (2 Form A)
Coil Voltage	24VDC	Coil Type	Non Latching
Coil Resistance	250 Ohms	Coil Power	2.3 W
Coil Current	95.8mA
