Home > Products > Relays > Power Relays, Over 2 Amps > G7L-2A-P-PV-DC12

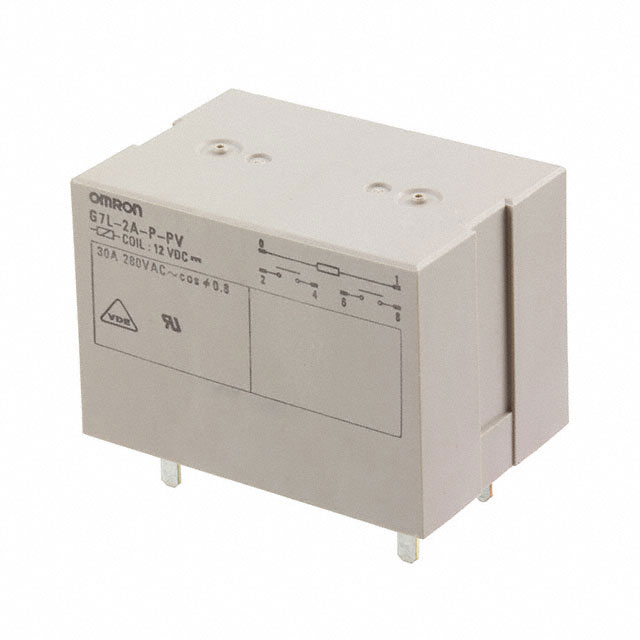

G7L-2A-P-PV-DC12

G7L-2A-P-PV-DC12

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G7L-2A-P-PV-DC12 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	G7L-2A-P-PV-DC12
Manufacturer	Omron
Description	RELAY GEN PURPOSE DPST 30A 12V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 9384 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$5.948	$5.285	$5.021	$4.757
	$4.493	$4.096	$3.832

Product parameter
Data sheet

Product parameter

Part Number	G7L-2A-P-PV-DC12	Manufacturer	Omron
Description	RELAY GEN PURPOSE DPST 30A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9384 pcs	Data sheet	G7L-PV Datasheet
Category	Relays	Turn On Voltage (Max)	9 VDC
Turn Off Voltage (Min)	1.2 VDC	Termination Style	PC Pin
Switching Voltage	277VAC - Max	Series	G7L-PV
Release Time	30ms	Relay Type	General Purpose
Packaging	Bulk	Other Names	G7L-2A-P-PV DC12 G7L-2A-P-PV DC12 BY OMI G7L-2A-P-PV-DC12 BYOMI G7L2APPVDC12 G7L2APPVDC12BYOMI Z4254
Operating Temperature	-25°C ~ 85°C	Operate Time	30ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Contact Rating (Current)	30A	Contact Material	Silver Alloy
Contact Form	DPST-NO (2 Form A)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	63 Ohms
Coil Power	2.3 W	Coil Current	192mA
