Home > Products > Sensors, Transducers > Optical Sensors - Photointerrupters - Slot Type - > EE-SX3009-P1

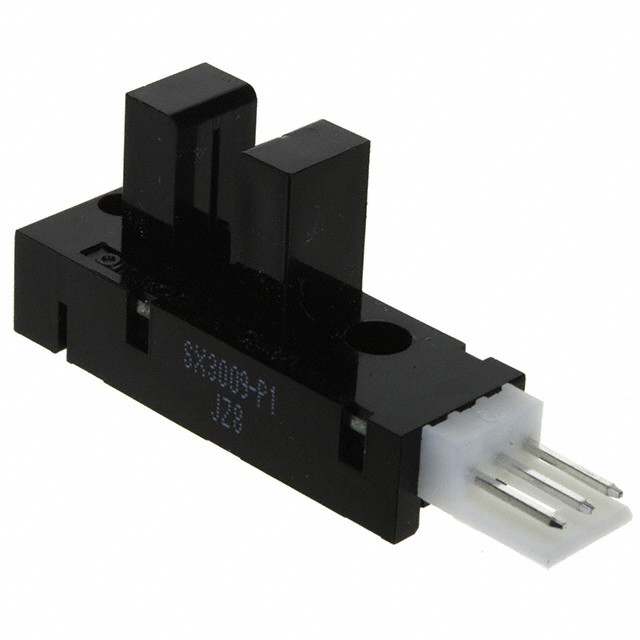

EE-SX3009-P1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EE-SX3009-P1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EE-SX3009-P1
Manufacturer	Omron
Description	PHOTO MICROSENSOR 0.5MM DARK ON
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	500 pcs	1000 pcs
~~In Stock~~ 38449 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs
	$2.389	$2.108	$1.862	$1.511
	$1.335	$1.30	$1.089	$1.019

Product parameter
Data sheet

Product parameter

Part Number	EE-SX3009-P1	Manufacturer	Omron
Description	PHOTO MICROSENSOR 0.5MM DARK ON	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38449 pcs	Data sheet	EE-SX(3,4)009-P1
Category	Sensors, Transducers	Voltage - Supply	10V
Series	-	Sensing Method	Transmissive
Sensing Distance	0.197" (5mm)	Response Time	-
Package / Case	Module, Connector	Output Configuration	NPN - Open Collector/Dark-ON
Other Names	EE-SX3009-P1-ND EESX3009P1 OR796 Q2848209	Operating Temperature	-25°C ~ 75°C (TA)
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Optical Sensor Transmissive 0.197" (5mm) Module, Connector	Current - Supply	30mA
