Home > Products > Sensors, Transducers > Optical Sensors - Photointerrupters - Slot Type - > EE-SV3

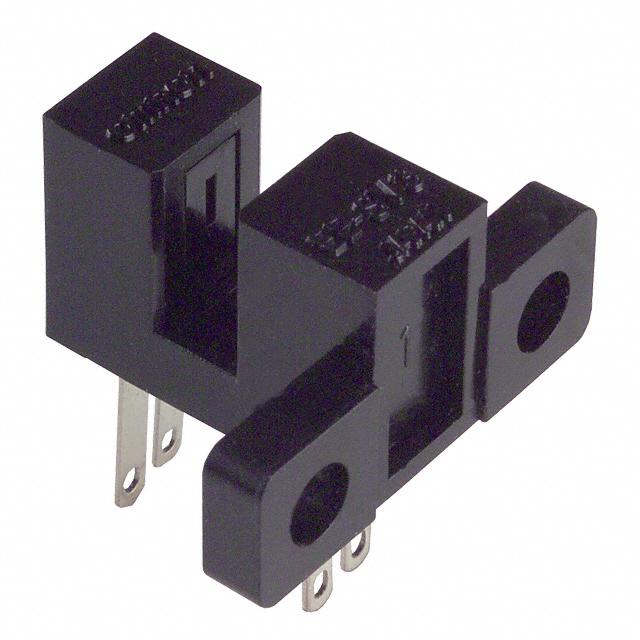

EE-SV3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EE-SV3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EE-SV3
Manufacturer	Omron
Description	SENSR OPTO SLOT 3.4MM TRANS THRU
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	500 pcs	1000 pcs
~~In Stock~~ 30518 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs
	$2.605	$2.298	$2.029	$1.646
	$1.455	$1.417	$1.187	$1.11

Product parameter
Data sheet

Product parameter

Part Number	EE-SV3	Manufacturer	Omron
Description	SENSR OPTO SLOT 3.4MM TRANS THRU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30518 pcs	Data sheet	EE-SV3 Series
Category	Sensors, Transducers	Voltage - Collector Emitter Breakdown (Max)	30V
Type	Unamplified	Series	-
Sensing Method	Transmissive	Sensing Distance	0.134" (3.4mm)
Response Time	4µs, 4µs	Packaging	Bulk
Package / Case	Module, Connector, Slot Type	Output Configuration	Phototransistor
Other Names	EE-SV3-ND EESV3 OR714 Z2200 Z2200-ND	Operating Temperature	-25°C ~ 85°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Optical Sensor Transmissive 0.134" (3.4mm) Phototransistor Module, Connector, Slot Type	Current - DC Forward (If) (Max)	50mA
Current - Collector (Ic) (Max)	20mA
