Home > Products > Switches > Accessories > D3V2-HL

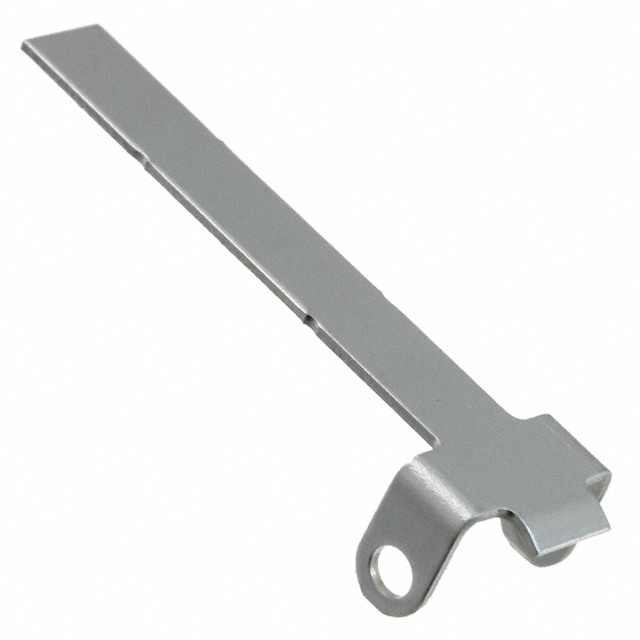

D3V2-HL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D3V2-HL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D3V2-HL
Manufacturer	Omron
Description	D3V HINGE LEVER (EXT)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 280965 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.154	$0.145	$0.139	$0.133	$0.127
	$0.101	$0.093	$0.09	$0.081

Product parameter
Data sheet

Product parameter

Part Number	D3V2-HL	Manufacturer	Omron
Description	D3V HINGE LEVER (EXT)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	280965 pcs	Data sheet	D3V Series Datasheet
Category	Switches	Series	D3V
Other Names	D3V2-HL-ND D3V2HL SW1417	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
For Use With/Related Products	D3V Series	Accessory Type	Lever
