Home > Products > Switches > Snap Action, Limit Switches > D3V-115M-1A4

D3V-115M-1A4

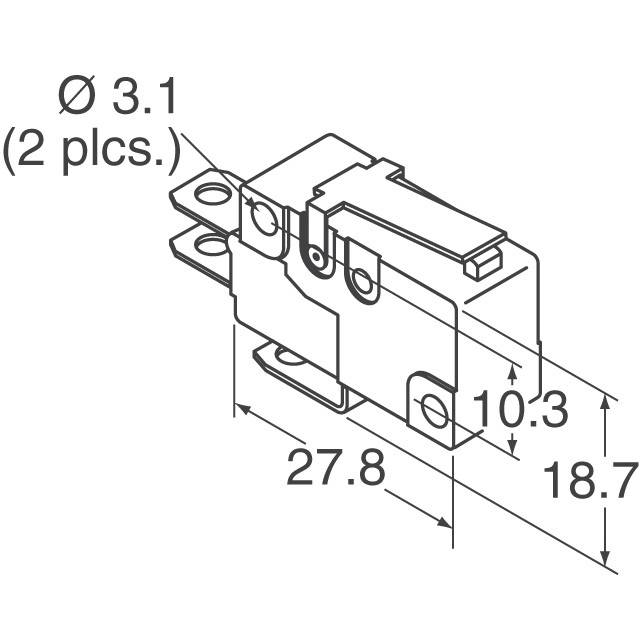

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D3V-115M-1A4 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D3V-115M-1A4
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 11A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 62799 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.628	$0.593	$0.569	$0.545	$0.522
	$0.415	$0.379	$0.367	$0.332

Product parameter
Data sheet

Product parameter

Part Number	D3V-115M-1A4	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 11A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62799 pcs	Data sheet	D3V Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	250V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	D3V
Release Force	15gf	Pretravel	0.063" (1.6mm)
Packaging	Bulk	Overtravel	0.031" (0.79mm)
Other Names	D3V-115M-1A4-ND D3V115M1A4 D3V115M1A4BYOMI Z4490	Operating Temperature	-25°C ~ 105°C
Operating Position	0.815" (20.7mm)	Operating Force	120gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	200,000 Cycles
Differential Travel	0.025" (0.6mm)	Current Rating	11A (AC), 6A (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
