Home > Products > Switches > Snap Action, Limit Switches > D3V-015-1C23

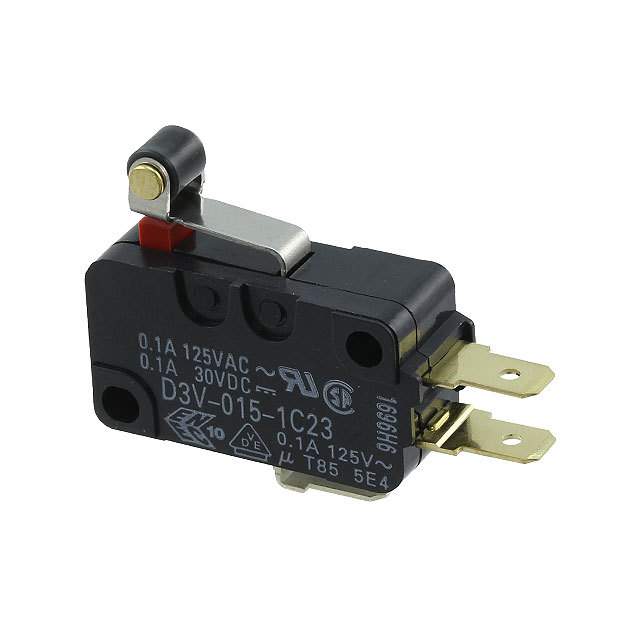

D3V-015-1C23

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D3V-015-1C23 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D3V-015-1C23
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 57697 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.183	$1.094	$1.025	$1.002	$0.797
	$0.752	$0.706	$0.661	$0.615

Product parameter
Data sheet

Product parameter

Part Number	D3V-015-1C23	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57697 pcs	Data sheet	D3V Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	D3V
Release Force	6.118gf	Pretravel	0.063" (1.6mm)
Packaging	Bulk	Overtravel	0.031" (0.79mm)
Other Names	D3V-015-1C23-ND D3V0151C23 SW1469	Operating Temperature	-25°C ~ 85°C
Operating Position	0.815" (20.7mm)	Operating Force	60gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.025" (0.6mm)	Current Rating	100mA (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Roller
