Home > Products > Switches > Snap Action, Limit Switches > D2VW-5L3-1HS

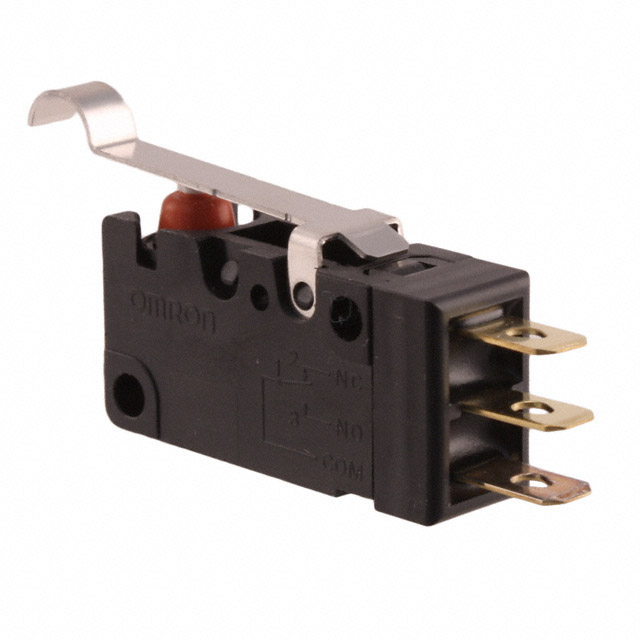

D2VW-5L3-1HS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2VW-5L3-1HS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2VW-5L3-1HS
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 22595 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.581	$2.066	$1.962	$1.911
	$1.653	$1.549	$1.472	$1.42

Product parameter
Data sheet

Product parameter

Part Number	D2VW-5L3-1HS	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22595 pcs	Data sheet	D2VW Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	D2VW
Release Force	15gf	Pretravel	0.157" (4.0mm)
Packaging	Bulk	Overtravel	0.062" (1.6mm)
Other Names	D2VW-5L3-1HS-ND D2VW5L31HS SW1058	Operating Temperature	-40°C ~ 85°C
Operating Position	0.738" (18.7mm)	Operating Force	120gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	100,000 Cycles
Differential Travel	0.031" (0.8mm)	Current Rating	5A (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Simulated Roller
