Home > Products > Switches > Snap Action, Limit Switches > D2VW-01L3-3HS

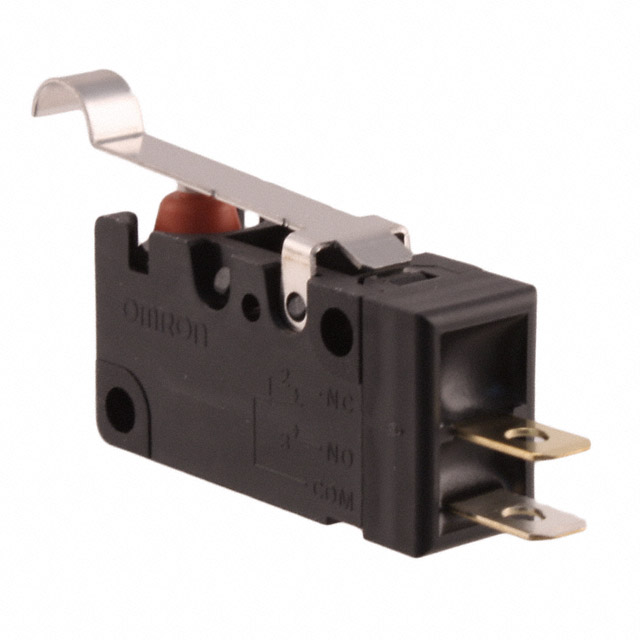

D2VW-01L3-3HS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2VW-01L3-3HS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2VW-01L3-3HS
Manufacturer	Omron
Description	SW SNAP ACT SPST-NO 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 20999 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.306	$2.645	$2.513	$2.447
	$2.116	$1.984	$1.885	$1.819

Product parameter
Data sheet

Product parameter

Part Number	D2VW-01L3-3HS	Manufacturer	Omron
Description	SW SNAP ACT SPST-NO 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20999 pcs	Data sheet	D2VW Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	Off-Mom	Series	D2VW
Release Force	15gf	Pretravel	0.157" (4.0mm)
Packaging	Bulk	Overtravel	0.062" (1.6mm)
Other Names	D2VW-01L3-3HS-ND D2VW01L33HS SW1240	Operating Temperature	-40°C ~ 85°C
Operating Position	0.738" (18.7mm)	Operating Force	120gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	1,000,000 Cycles
Differential Travel	0.031" (0.8mm)	Current Rating	100mA (AC/DC)
Circuit	SPST-NO	Actuator Type	Lever, Simulated Roller
