Home > Products > Switches > Snap Action, Limit Switches > D2VW-01L1B-1HS

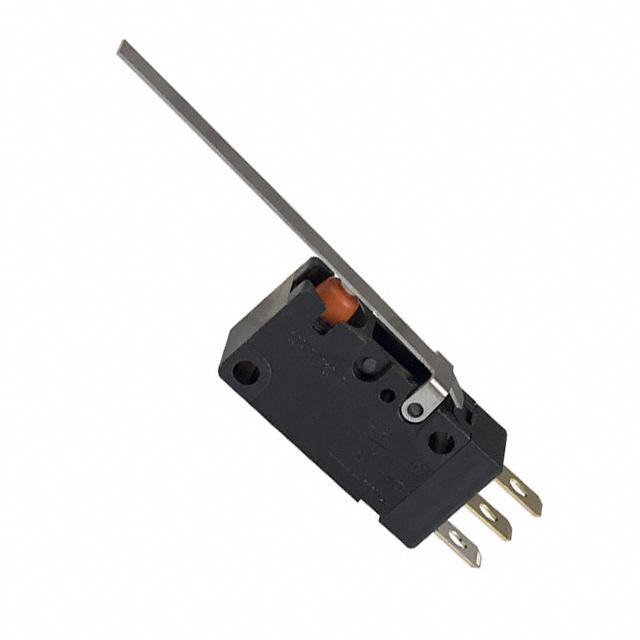

D2VW-01L1B-1HS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2VW-01L1B-1HS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2VW-01L1B-1HS
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 19699 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.082	$2.466	$2.342	$2.281
	$1.973	$1.849	$1.757	$1.695

Product parameter
Data sheet

Product parameter

Part Number	D2VW-01L1B-1HS	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19699 pcs	Data sheet	D2VW Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	D2VW
Release Force	5.099gf	Pretravel	0.354" (9.0mm)
Packaging	Bulk	Overtravel	0.125" (3.2mm)
Other Names	D2VW-01L1B-1HS-ND D2VW01L1B1HS SW863	Operating Temperature	-40°C ~ 85°C
Operating Position	0.600" (15.2mm)	Operating Force	60gf
Mounting Type	Chassis Mount	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	1,000,000 Cycles	Differential Travel	0.080" (2.0mm)
Current Rating	100mA (AC/DC)	Circuit	SPDT
Actuator Type	Lever, Straight
