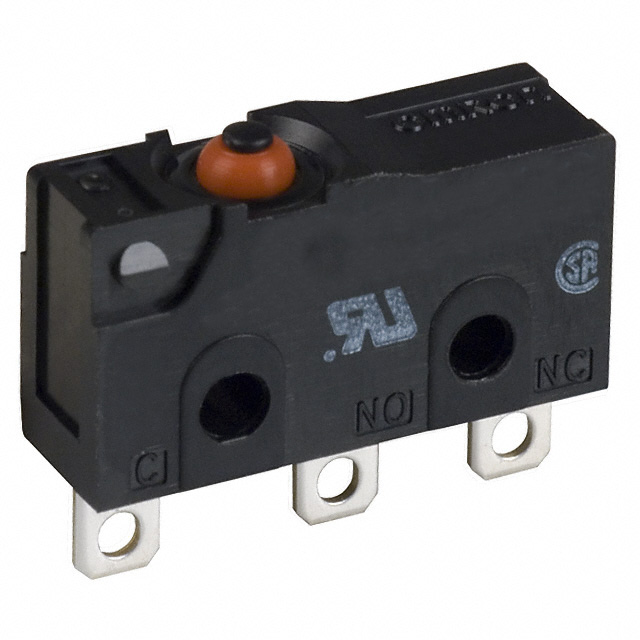

D2SW-3HS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-3HS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2SW-3HS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2SW-3HS |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACTION SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.625 | $1.434 | $1.338 | $1.274 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.083 | $0.988 | $0.924 | $0.892 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2SW-3HS | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39650 pcs | Data sheet | D2SW Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | D2SW |
| Release Force | 30gf | Pretravel | 0.024" (0.6mm) |
| Packaging | Bulk | Overtravel | 0.020" (0.5mm) |
| Other Names | D2SW-3H D2SW3HS SW228 |
Operating Temperature | -40°C ~ 85°C |
| Operating Position | 0.330" (8.4mm) | Operating Force | 180gf |
| Mounting Type | Chassis Mount | Mechanical Life | 5,000,000 Cycles |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | - |
| Electrical Life | 200,000 Cycles | Differential Travel | 0.004" (0.1mm) |
| Current Rating | 3A (AC/DC) | Circuit | SPDT |
| Actuator Type | Round (Pin Plunger) |
