Home > Products > Switches > Snap Action, Limit Switches > D2HW-C271H

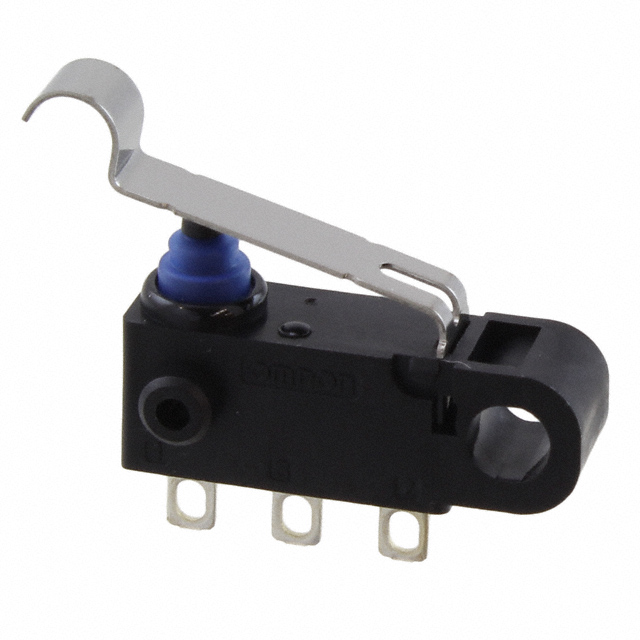

D2HW-C271H

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2HW-C271H with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2HW-C271H
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 45027 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.425	$1.256	$1.173	$1.117
	$0.949	$0.865	$0.81	$0.782

Product parameter
Data sheet

Product parameter

Part Number	D2HW-C271H	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45027 pcs	Data sheet	D2HW Series
Category	Switches	Voltage Rating - DC	12V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	D2HW
Release Force	20gf	Pretravel	-
Packaging	Bulk	Overtravel	0.079" (2.0mm)
Other Names	D2HW-C271H-ND D2HWC271H SW1995	Operating Temperature	-40°C ~ 85°C
Operating Position	0.425" (10.8mm)	Operating Force	183gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	100,000 Cycles
Differential Travel	0.020" (0.5mm)	Current Rating	100mA (AC), 2A (DC)
Circuit	SPDT	Actuator Type	Lever, Simulated Roller
