Home > Products > Switches > Snap Action, Limit Switches > D2HW-BL271M

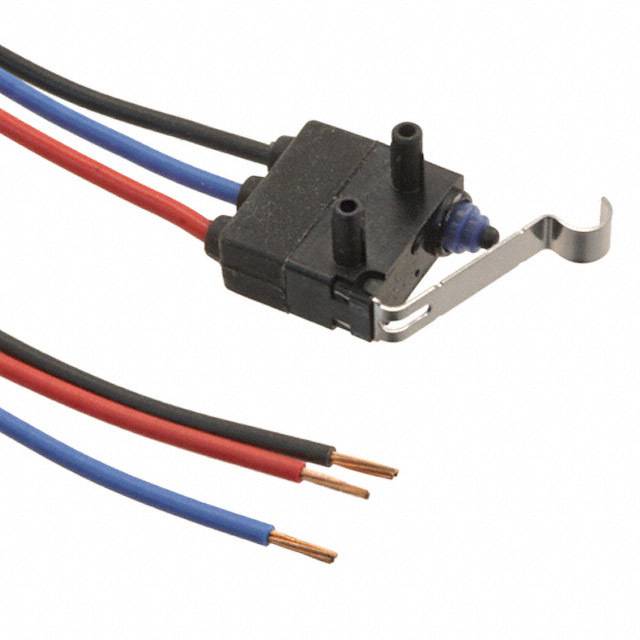

D2HW-BL271M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2HW-BL271M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2HW-BL271M
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	260 pcs	500 pcs	1000 pcs
~~In Stock~~ 19851 pcs
Reference Price (In US Dollars)	1 pcs	20 pcs	40 pcs	60 pcs
	$3.22	$2.575	$2.446	$2.382
	$2.06	$1.931	$1.835	$1.77

Product parameter
Data sheet

Product parameter

Part Number	D2HW-BL271M	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19851 pcs	Data sheet	D2HW Series
Category	Switches	Voltage Rating - DC	12V
Voltage Rating - AC	125V	Termination Style	Wire Leads
Switch Function	On-Mom	Series	D2HW
Release Force	20gf	Pretravel	-
Packaging	Bulk	Overtravel	0.079" (2.0mm)
Other Names	D2HW-BL271M BY OMR D2HWBL271M D2HWBL271MBYOMR SW742	Operating Temperature	-40°C ~ 85°C
Operating Position	0.425" (10.8mm)	Operating Force	183gf
Mounting Type	Chassis Mount	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	Support Posts
Electrical Life	100,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	100mA (AC), 2A (DC)	Circuit	SPDT
Actuator Type	Lever, Simulated Roller
