Home > Products > Switches > Snap Action, Limit Switches > D2HW-BL201DL

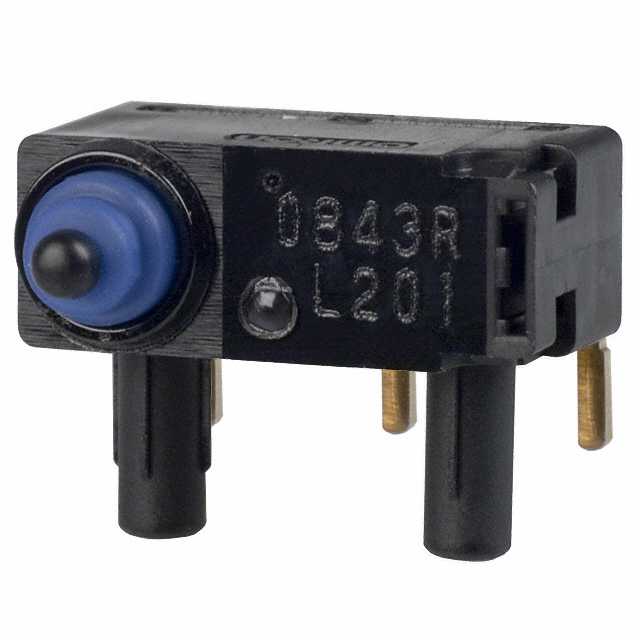

D2HW-BL201DL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2HW-BL201DL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2HW-BL201DL
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 58396 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.142	$1.053	$0.987	$0.965	$0.768
	$0.724	$0.68	$0.636	$0.592

Product parameter
Data sheet

Product parameter

Part Number	D2HW-BL201DL	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58396 pcs	Data sheet	D2HW Series
Category	Switches	Voltage Rating - DC	12V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-Mom	Series	D2HW
Release Force	10gf	Pretravel	-
Packaging	Bulk	Overtravel	0.055" (1.4mm)
Other Names	D2HWBL201DL SW715	Operating Temperature	-40°C ~ 85°C
Operating Position	0.250" (6.4mm)	Operating Force	76gf
Mounting Type	Through Hole, Right Angle	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	Support Posts
Electrical Life	100,000 Cycles	Differential Travel	0.010" (0.25mm)
Current Rating	100mA (AC), 2A (DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
