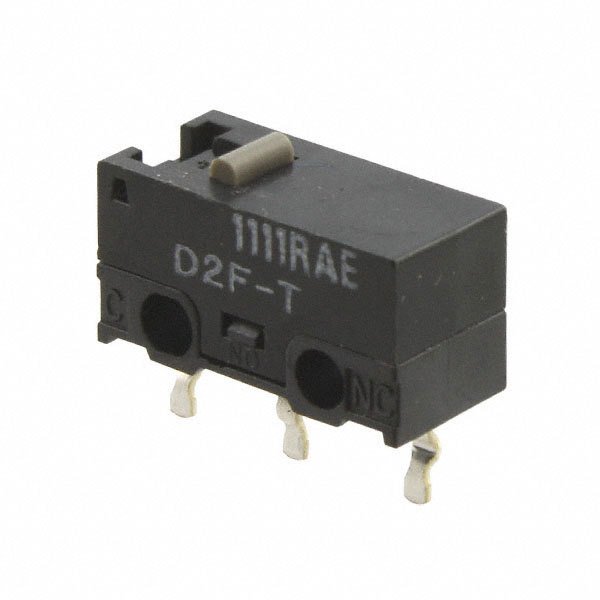

D2F-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2F-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2F-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2F-T |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACTION SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.566 | $0.534 | $0.513 | $0.492 | $0.47 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.374 | $0.342 | $0.331 | $0.299 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2F-T | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67165 pcs | Data sheet | D2F Series Datasheet~ |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | D2F |
| Release Force | 20gf | Pretravel | 0.020" (0.5mm) |
| Packaging | Bulk | Overtravel | 0.010" (0.25mm) |
| Other Names | D2F-T-ND D2FT SW1149 |
Operating Temperature | -25°C ~ 65°C |
| Operating Position | 0.217" (5.5mm) | Operating Force | 150gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP40 |
| Features | - | Electrical Life | 30,000 Cycles |
| Differential Travel | 0.005" (0.12mm) | Current Rating | 3A (AC), 2A (DC) |
| Circuit | SPDT | Actuator Type | Round (Pin Plunger) |
