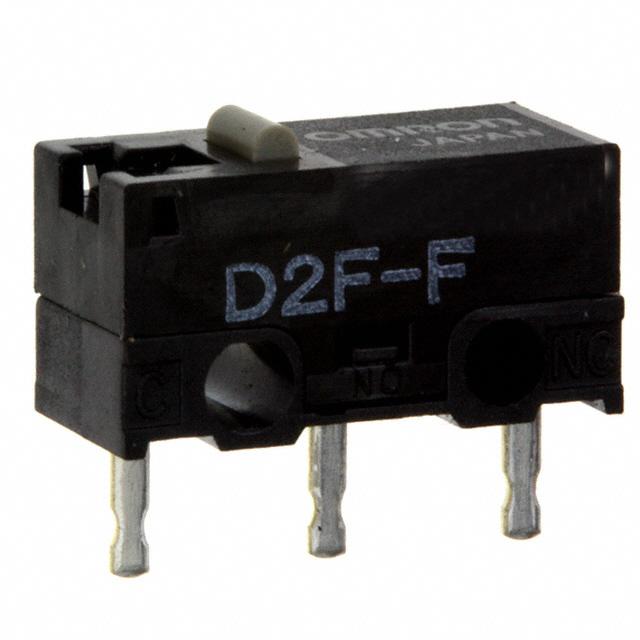

D2F-F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2F-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2F-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2F-F |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACTION SPDT 1A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.731 | $0.674 | $0.632 | $0.618 | $0.492 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.464 | $0.436 | $0.408 | $0.379 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2F-F | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 1A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78924 pcs | Data sheet | D2F Series Datasheet~ |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | D2F |
| Release Force | 5.099gf | Pretravel | 0.020" (0.5mm) |
| Packaging | Bulk | Overtravel | 0.010" (0.25mm) |
| Other Names | D2FF SW503 |
Operating Temperature | -25°C ~ 65°C |
| Operating Position | 0.217" (5.5mm) | Operating Force | 75gf |
| Mounting Type | Through Hole | Mechanical Life | 1,000,000 Cycles |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP40 | Features | - |
| Electrical Life | 30,000 Cycles | Differential Travel | 0.005" (0.12mm) |
| Current Rating | 1A (AC), 500mA (DC) | Circuit | SPDT |
| Actuator Type | Round (Pin Plunger) |
