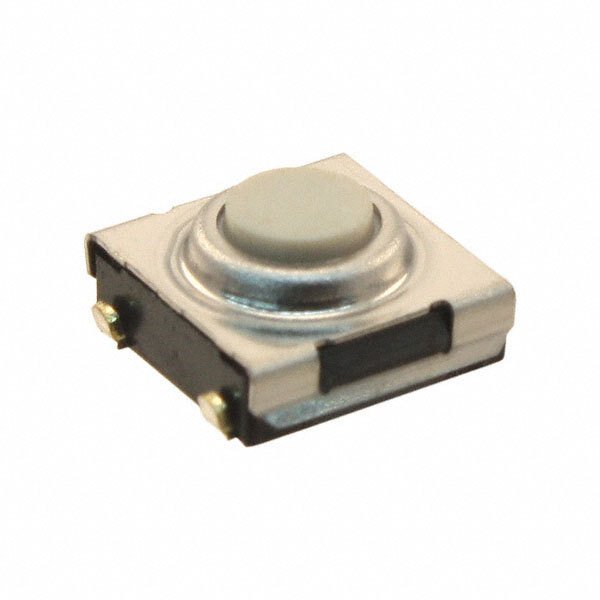

B3SN-3012
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B3SN-3012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B3SN-3012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B3SN-3012 |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.374 | $0.359 | $0.339 | $0.298 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.271 | $0.258 | $0.251 | $0.203 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B3SN-3012 | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98119 pcs | Data sheet | B3SN Tactile Switch, SMD |
| Category | Switches | Termination Style | SMD (SMT) Tab |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | B3SN | Packaging | Bulk |
| Outline | 6.50mm x 6.00mm | Other Names | B3SN-3012-ND B3SN3012 SW1142 |
| Operating Temperature | -25°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Sealed - Fully | Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage | 0.05A @ 24VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 3.10mm |
