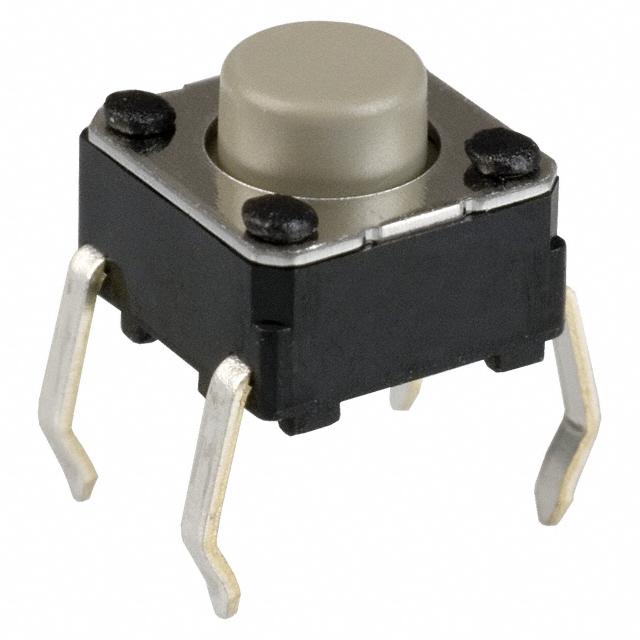

B3F-1022
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B3F-1022 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B3F-1022 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B3F-1022 |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.117 | $0.114 | $0.11 | $0.106 | $0.102 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.094 | $0.081 | $0.069 | $0.058 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B3F-1022 | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 366160 pcs | Data sheet | B3F Series Datasheet |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | B3F | Packaging | Bulk |
| Outline | 6.00mm x 6.00mm | Other Names | B3F1022 SW403 |
| Operating Temperature | -25°C ~ 70°C | Operating Force | 150gf |
| Mounting Type | Through Hole | Mechanical Life | 300,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 5.00mm |
