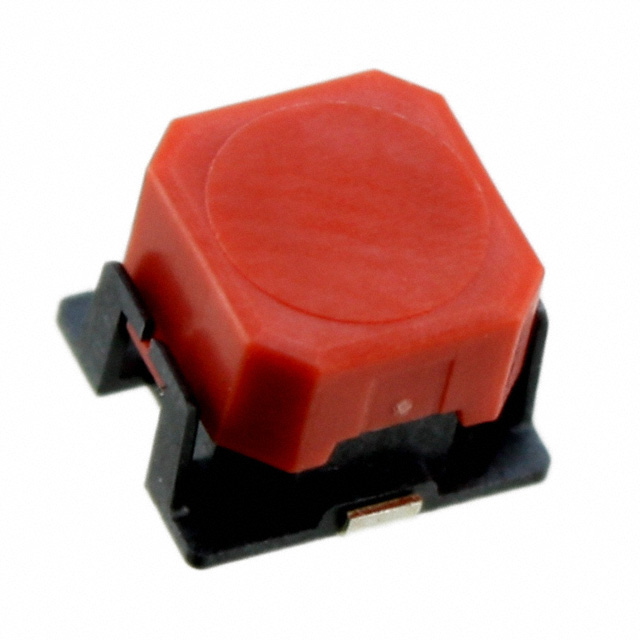

B3AL-1005P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B3AL-1005P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B3AL-1005P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B3AL-1005P |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH TACTILE SPST-NO 0.05A 16V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.837 | $0.806 | $0.741 | $0.645 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.612 | $0.596 | $0.58 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B3AL-1005P | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 16V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65092 pcs | Data sheet | B3AL Series Datasheet |
| Category | Switches | Termination Style | SMD (SMT) Tab |
| Switch Travel | 1.30mm | Switch Function | Off-Mom |
| Series | B3AL | Packaging | Original-Reel® |
| Outline | 6.90mm x 6.00mm | Other Names | Z7816DKR |
| Operating Temperature | -40°C ~ 90°C | Operating Force | 459gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 16VDC |
| Circuit | SPST-NO | Actuator Type | Square Button |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 5.00mm |
