Home > Products > Switches > Rocker Switches > A8GS-D1285

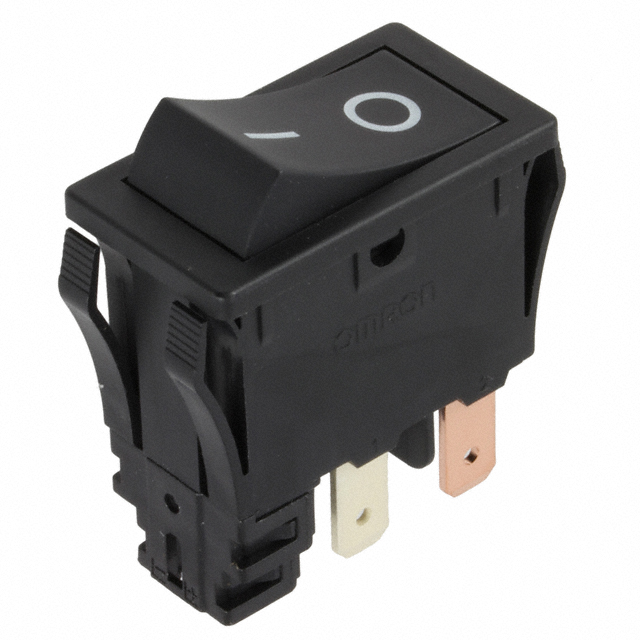

A8GS-D1285

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A8GS-D1285 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A8GS-D1285
Manufacturer	Omron
Description	SWITCH ROCKER DPST 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7278 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$6.858	$6.318	$6.137	$5.956
	$5.776	$5.235	$4.873

Product parameter
Data sheet

Product parameter

Part Number	A8GS-D1285	Manufacturer	Omron
Description	SWITCH ROCKER DPST 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7278 pcs	Data sheet	A8GS Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	A8GS	Panel Cutout Dimensions	Rectangular - 27.70mm x 15.20mm
Packaging	Bulk	Other Names	A8GSD1285 SW1526
Operating Temperature	-10°C ~ 55°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Remote Reset Function
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPST 16A (AC) 125V Panel Mount, Snap-In
Current Rating	16A (AC)	Color - Actuator/Cap	Black
Circuit	DPST	Actuator Type	Concave (Curved)
Actuator Marking	O -
