Home > Products > Switches > DIP Switches > A6HR-2104

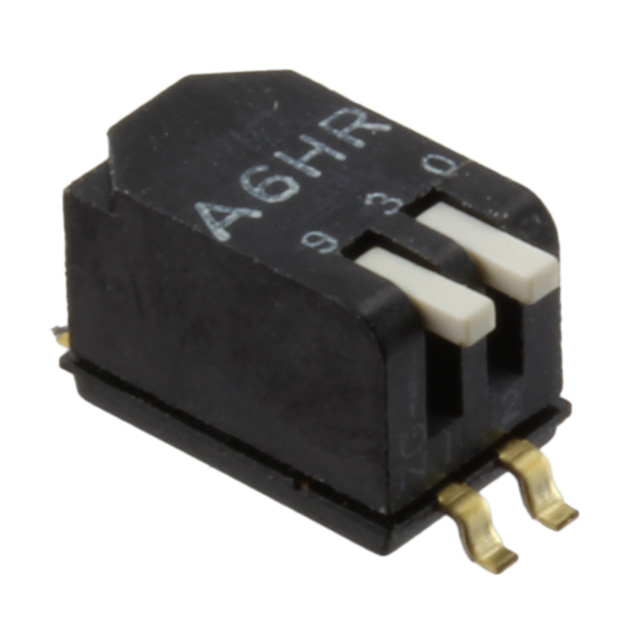

A6HR-2104

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A6HR-2104 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A6HR-2104
Manufacturer	Omron
Description	SWITCH PIANO DIP SPST 25MA 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 32053 pcs
Reference Price (In US Dollars)	125 pcs
Reference Price (In US Dollars)	$1.219

Product parameter
Data sheet

Product parameter

Part Number	A6HR-2104	Manufacturer	Omron
Description	SWITCH PIANO DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32053 pcs	Data sheet	A6HR Series
Category	Switches	Washable	No
Voltage Rating	24VDC	Termination Style	Gull Wing
Series	A6HR	Pitch	0.050" (1.27mm), Half
Packaging	Tube	Other Names	A6HR2104
Operating Temperature	-30°C ~ 85°C	Number of Positions	2
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Length	0.144" (3.67mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.165" (4.20mm)
Features	-	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 2 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	-	Contact Finish	Gold
Circuit	SPST	Body Material	-
Actuator Type	Piano	Actuator Level	Raised
