MGN1X-AC12

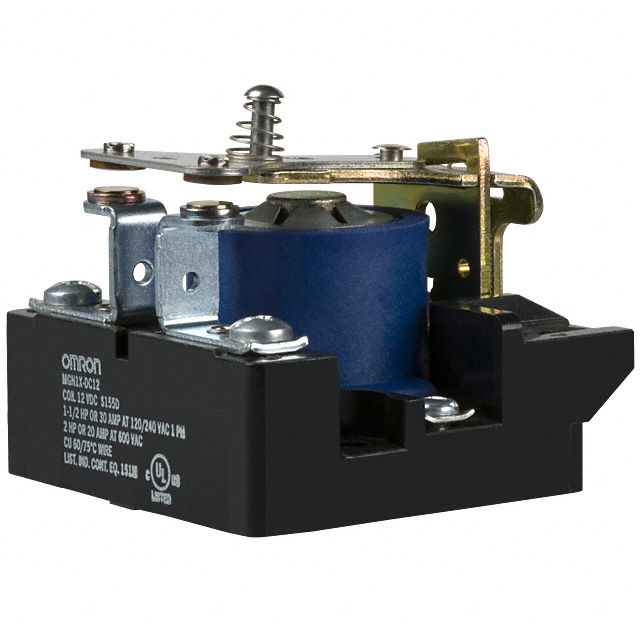

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MGN1X-AC12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MGN1X-AC12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MGN1X-AC12 |
|---|---|
| Manufacturer | Omron Automation & Safety |
| Description | RELAY GEN PURPOSE SPST 30A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $16.438 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MGN1X-AC12 | Manufacturer | Omron Automation & Safety |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 30A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2181 pcs | Data sheet | MGN Heavy Duty Power Relay |
| Category | Relays | Turn On Voltage (Max) | 10.2 VAC |
| Turn Off Voltage (Min) | - | Termination Style | Screw Terminal |
| Switching Voltage | 600VAC, 28VDC - Max | Series | MGN |
| Release Time | 30ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | MGN1XAC12 |
| Operating Temperature | -45°C ~ 80°C | Operate Time | 30ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 41 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F | Detailed Description | General Purpose Relay SPST-NO (DM) (1 Form X) 12VAC Coil Chassis Mount |
| Contact Rating (Current) | 30A | Contact Material | - |
| Contact Form | SPST-NO (DM) (1 Form X) | Coil Voltage | 12VAC |
| Coil Type | Non Latching | Coil Resistance | 2.9 Ohms |
| Coil Power | 9.5 VA | Coil Current | 791mA |
