Home > Products > Industrial Controls > Time Delay Relays > H3BA-N 24 VDC

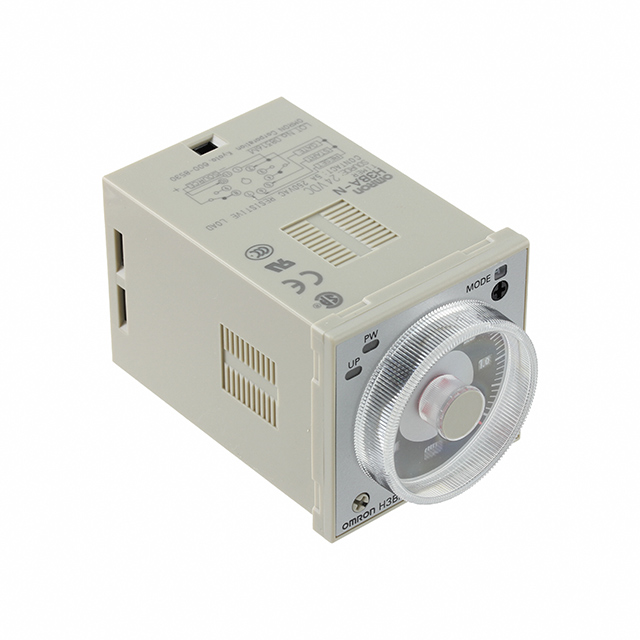

H3BA-N 24 VDC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3BA-N 24 VDC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H3BA-N 24 VDC
Manufacturer	Omron Automation & Safety
Description	RELAY TIME DELAY 300HR 5A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1295 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$36.029	$34.026	$32.025	$30.023	$28.022

Product parameter

Product parameter

Part Number	H3BA-N 24 VDC	Manufacturer	Omron Automation & Safety
Description	RELAY TIME DELAY 300HR 5A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1295 pcs	Data sheet
Category	Industrial Controls	Voltage - Supply	24VDC
Timing Initiate Method	Input Voltage	Timing Adjustment Method	Hand Dial
Termination Style	Plug In, 11 Pin (Octal)	Series	H3BA-N
Relay Type	Mechanical Relay	Other Names	H3BA-N 24 VDC-ND H3BA/N 24 VDC H3BAN24VDC Z6342
Mounting Type	Socketable	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Function	Programmable (Multi-Function)
Detailed Description	Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 300 Hrs Delay 5A @ 250VAC Socketable	Delay Time	0.05 Sec ~ 300 Hrs
Contact Rating @ Voltage	5A @ 250VAC	Circuit	DPDT (2 Form C)
