Home > Products > Switches > Snap Action, Limit Switches > D4CC-3003

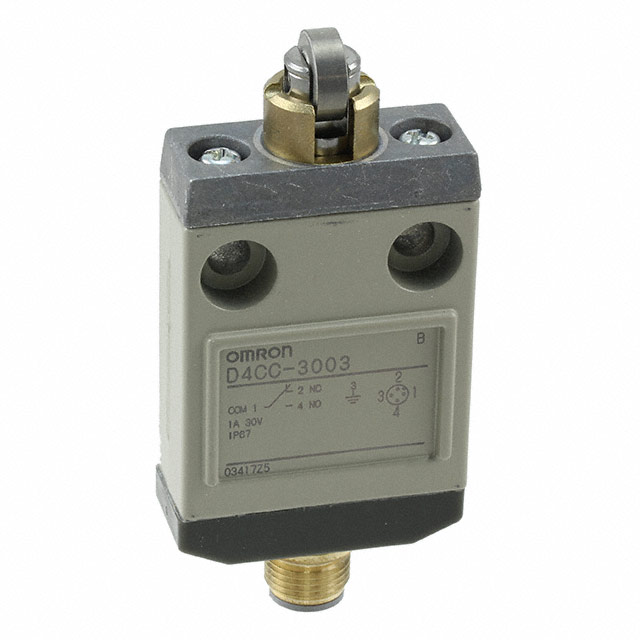

D4CC-3003

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D4CC-3003 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D4CC-3003
Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION SPDT 1A 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1335 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$36.872	$34.764	$32.657	$30.55	$29.497

Product parameter
Data sheet

Product parameter

Part Number	D4CC-3003	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION SPDT 1A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1335 pcs	Data sheet	D4CC Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Termination Style	Connector	Switch Function	On-Mom
Series	D4CC	Release Force	450gf
Pretravel	0.071" (1.8mm)	Packaging	Bulk
Overtravel	0.118" (3.0mm)	Other Names	D4CC-3003-ND D4CC3003 Z7171
Operating Temperature	-10°C ~ 70°C	Operating Position	1.122" (28.5mm)
Operating Force	1200gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	2 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	200,000 Cycles	Differential Travel	0.008" (0.2mm)
Current Rating	1A (DC)	Circuit	SPDT
Actuator Type	Cross Roller Plunger
