Home > Products > Switches > Pushbutton Switches > A3PA-90A11-24AG

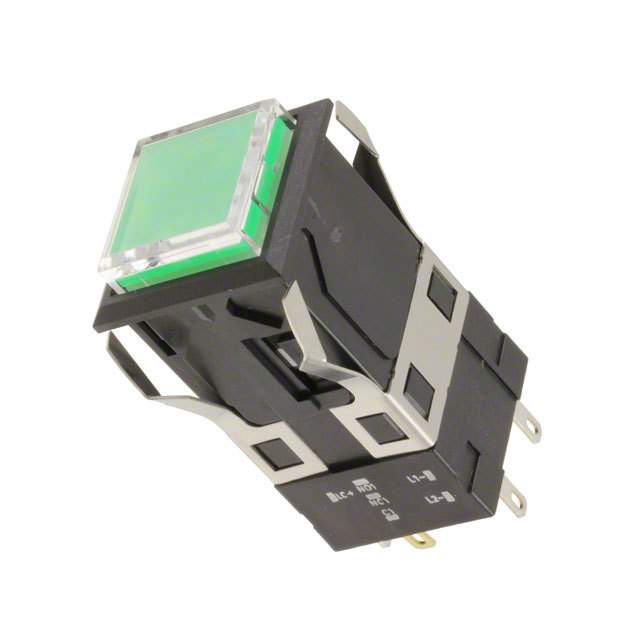

A3PA-90A11-24AG

A3PA-90A11-24AG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A3PA-90A11-24AG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A3PA-90A11-24AG
Manufacturer	Omron Automation & Safety
Description	SWITCH PUSHBUTTON SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1793 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$20.148	$19.855	$19.271	$18.103	$16.935

Product parameter
Data sheet

Product parameter

Part Number	A3PA-90A11-24AG	Manufacturer	Omron Automation & Safety
Description	SWITCH PUSHBUTTON SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1793 pcs	Data sheet	A3P Series ,Ultra Bright
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	A3P	Panel Cutout Dimensions	Rectangular - 23.50mm x 22.50mm
Packaging	Bulk	Other Names	A3PA90A1124AG SW1644
Operating Temperature	-10°C ~ 40°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Illumination Voltage (Nominal)	24 VAC/DC	Illumination Type, Color	LED, Green
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	5A (AC), 4A (DC)
Color - Actuator/Cap	Green	Circuit	SPDT
Actuator Type	Square, Button
