Home > Products > Switches > Pushbutton Switches > A22ELM24A12

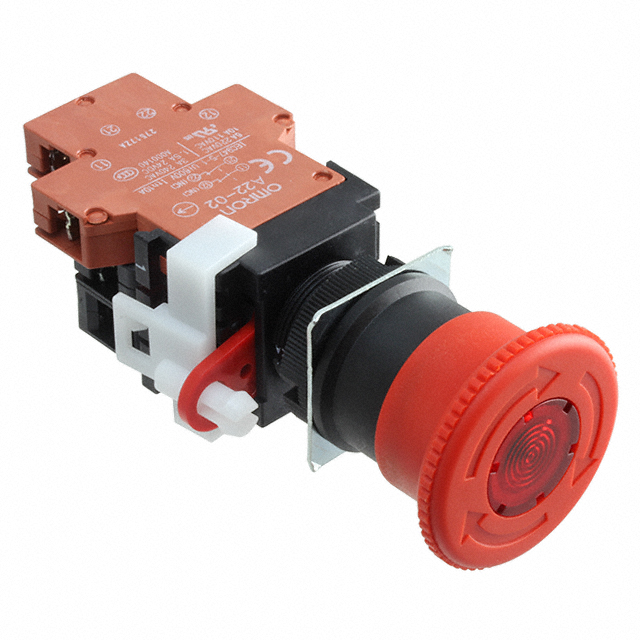

A22ELM24A12

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A22ELM24A12 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A22ELM24A12
Manufacturer	Omron Automation & Safety
Description	SW PB DPST-NC + SPST-NO 10A 110V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 790 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$51.289	$48.359	$45.428	$42.497

Product parameter
Data sheet

Product parameter

Part Number	A22ELM24A12	Manufacturer	Omron Automation & Safety
Description	SW PB DPST-NC + SPST-NO 10A 110V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	790 pcs	Data sheet	A22E Series Datasheet
Category	Switches	Voltage Rating - DC	24V
Voltage Rating - AC	110V	Type	Emergency Stop, Illuminated
Termination Style	Screw Terminal	Switch Function	On-Off, Off-On
Series	A22E	Panel Cutout Dimensions	Circular - 22.30mm Dia
Packaging	Bulk	Other Names	Z6952
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	300,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP65 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	24 VAC/DC
Illumination Type, Color	LED, Red	Features	Push-Lock, Turn-Reset
Electrical Life	300,000 Cycles	Detailed Description	Pushbutton Switch 3PST-2NC/1NO Emergency Stop, Illuminated Panel Mount, Front
Current Rating	10A (AC/DC)	Color - Actuator/Cap	Red
Circuit	3PST-2NC/1NO	Actuator Type	Round, Button, Mushroom
