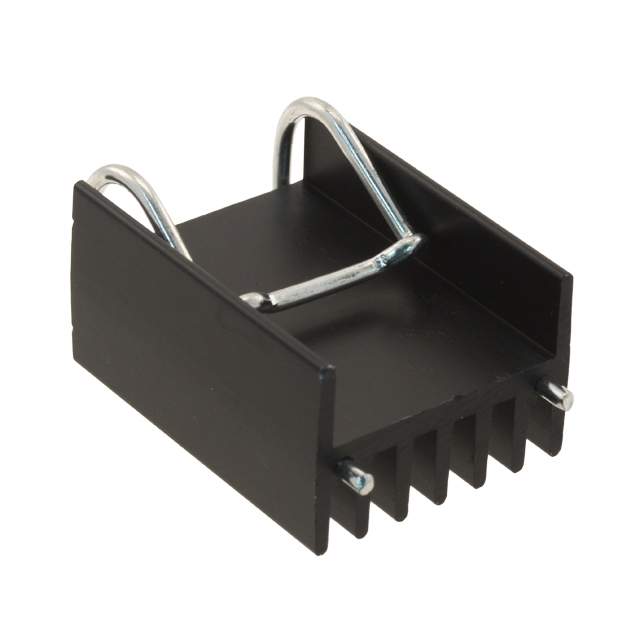

WA-T247-101E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WA-T247-101E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WA-T247-101E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WA-T247-101E |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK AND CLIP FOR TO-247 BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.914 | $0.889 | $0.865 | $0.817 | $0.768 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.72 | $0.696 | $0.624 | $0.612 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | WA-T247-101E | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK AND CLIP FOR TO-247 BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61965 pcs | Data sheet | W Series |
| Category | Fans, Thermal Management | Width | 0.921" (23.40mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 7.00°C/W |
| Thermal Resistance @ Forced Air Flow | 8.00°C/W @ 500 LFM | Shape | Rectangular, Fins |
| Series | W | Power Dissipation @ Temperature Rise | 1.0W @ 20°C |
| Package Cooled | TO-247 | Other Names | WAT247101E |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 1.260" (32.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.630" (16.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-247 Aluminum 1.0W @ 20°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
