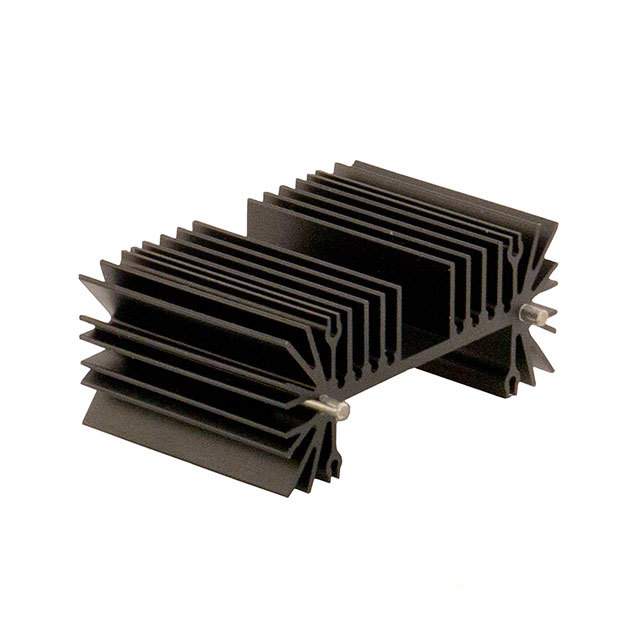

VM2-038-1AE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VM2-038-1AE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VM2-038-1AE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VM2-038-1AE |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK HORIZONTAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.739 | $1.692 | $1.646 | $1.555 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.463 | $1.372 | $1.326 | $1.189 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | VM2-038-1AE | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK HORIZONTAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30698 pcs | Data sheet | VM Series |
| Category | Fans, Thermal Management | Width | 2.362" (60.00mm) |
| Type | Board Level | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 0.60°C/W @ 600 LFM | Shape | Rectangular, Fins |
| Series | VM | Power Dissipation @ Temperature Rise | 10.0W @ 50°C |
| Package Cooled | TO-220, TO-247 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Finish | Black Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 20 Weeks | Length | 1.520" (38.61mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.984" (25.00mm) |
| Diameter | - | Detailed Description | Heat Sink TO-220, TO-247 Aluminum 10.0W @ 50°C Board Level |
| Attachment Method | Solderable Feet |
