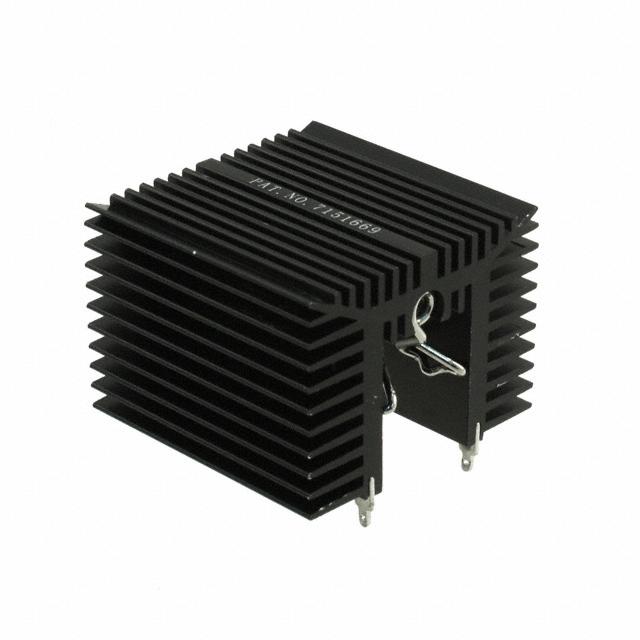

MA-302-55E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA-302-55E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA-302-55E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA-302-55E |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK FOR TO-247 TO-264 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.525 | $3.431 | $3.24 | $3.05 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.859 | $2.668 | $2.478 | $2.43 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA-302-55E | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK FOR TO-247 TO-264 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13832 pcs | Data sheet | M Series Heatsinks |
| Category | Fans, Thermal Management | Width | 2.200" (55.88mm) |
| Type | Top Mount | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 1.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | M | Power Dissipation @ Temperature Rise | 5.0W @ 20°C |
| Package Cooled | TO-247, TO-264 | Other Names | MA30255E |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 17 Weeks |
| Length | 2.170" (55.12mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.712" (43.48mm) | Diameter | - |
| Detailed Description | Heat Sink TO-247, TO-264 Aluminum 5.0W @ 20°C Top Mount | Attachment Method | Clip and PC Pin |
