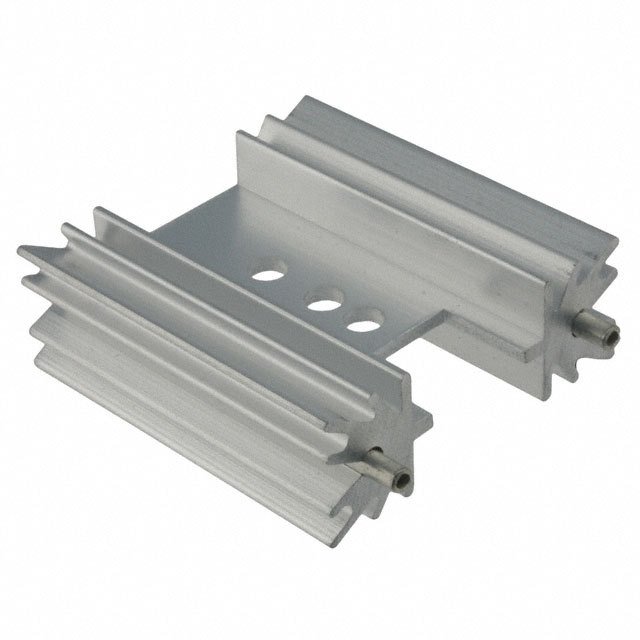

EV-T220-38E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EV-T220-38E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EV-T220-38E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EV-T220-38E |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK FOR TO-220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.772 | $0.75 | $0.73 | $0.69 | $0.649 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.608 | $0.588 | $0.527 | $0.517 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EV-T220-38E | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK FOR TO-220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67009 pcs | Data sheet | E Series Heatsinks |
| Category | Fans, Thermal Management | Width | 1.378" (35.00mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.00°C/W |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | E | Power Dissipation @ Temperature Rise | 8.0W @ 80°C |
| Package Cooled | TO-220 | Other Names | EVT22038E |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Degreased |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 1.500" (38.10mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 8.0W @ 80°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
