DV-T268-101E

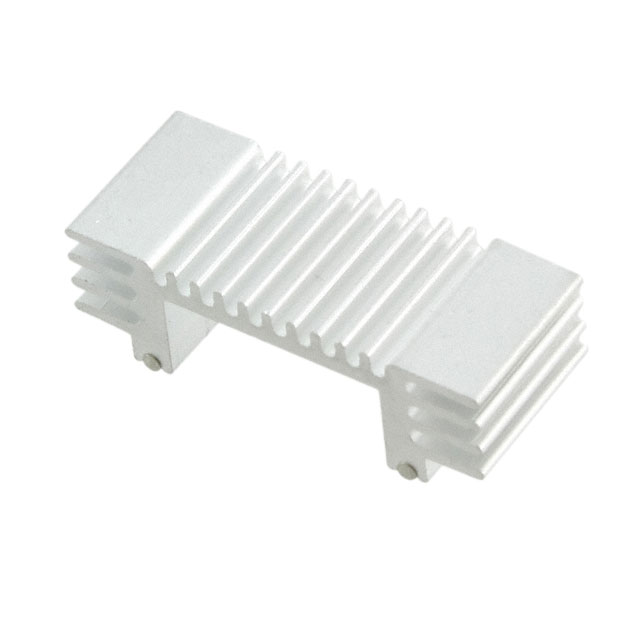

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DV-T268-101E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DV-T268-101E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DV-T268-101E |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK FOR TO-268 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.718 | $0.70 | $0.681 | $0.643 | $0.606 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.568 | $0.549 | $0.492 | $0.483 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DV-T268-101E | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK FOR TO-268 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63276 pcs | Data sheet | D Series |
| Category | Fans, Thermal Management | Width | 1.220" (30.99mm) |
| Type | Top Mount | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 600 LFM | Shape | Rectangular, Fins |
| Series | D | Power Dissipation @ Temperature Rise | 5.0W @ 35°C |
| Package Cooled | TO-268 (D³Pak) | Other Names | DVT268101E |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Degreased |
| Material | Aluminum | Length | 0.500" (12.70mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.400" (10.16mm) |
| Diameter | - | Detailed Description | Heat Sink TO-268 (D³Pak) Aluminum 5.0W @ 35°C Top Mount |
| Attachment Method | Solderable Feet |
