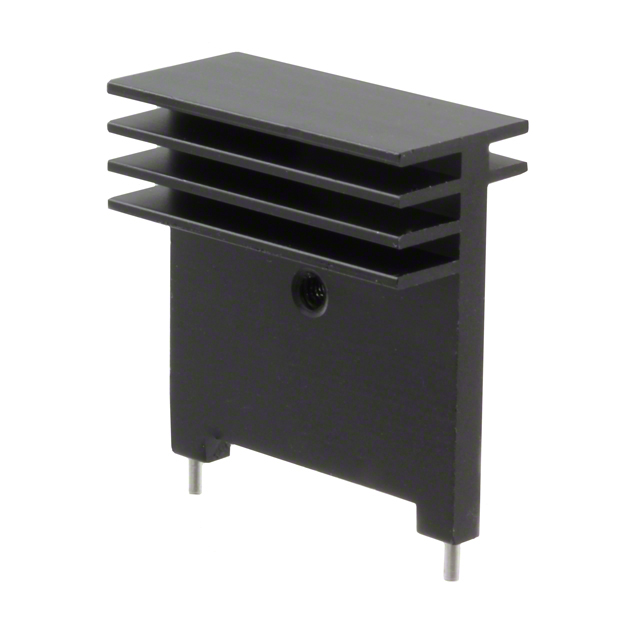

CSM222-30AE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CSM222-30AE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CSM222-30AE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CSM222-30AE |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK BLACK ANODIZED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.348 | $0.33 | $0.314 | $0.305 | $0.301 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.281 | $0.264 | $0.239 | $0.231 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CSM222-30AE | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK BLACK ANODIZED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93206 pcs | Data sheet | CSM Series |
| Category | Fans, Thermal Management | Width | 0.562" (14.27mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 11.30°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | CSM | Power Dissipation @ Temperature Rise | 5.0W @ 60°C |
| Package Cooled | TO-220 | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Finish | Black Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 20 Weeks | Length | 1.173" (29.80mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 1.228" (31.20mm) |
| Diameter | - | Detailed Description | Heat Sink TO-220 Aluminum 5.0W @ 60°C Board Level, Vertical |
| Attachment Method | Solderable Feet |
