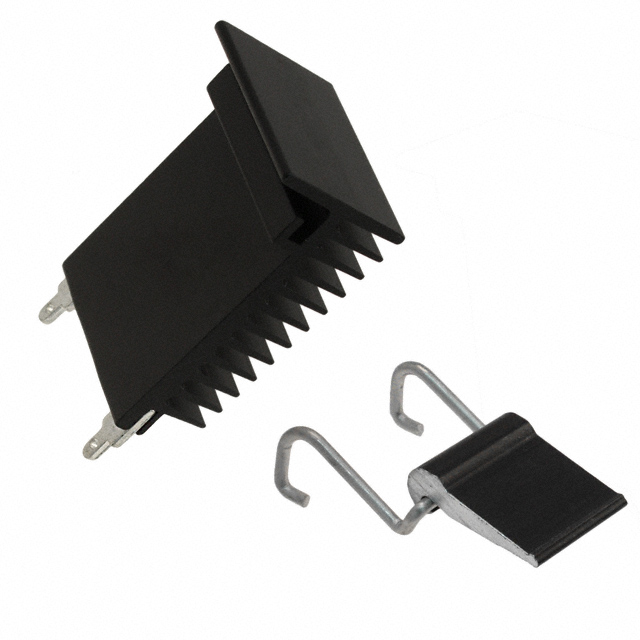

C247-025-1AE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy C247-025-1AE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy C247-025-1AE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | C247-025-1AE |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK FOR TO-247 WITH 1 CLIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.435 | $1.397 | $1.359 | $1.283 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.208 | $1.132 | $1.095 | $0.981 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | C247-025-1AE | Manufacturer | Ohmite |
|---|---|---|---|
| Description | HEATSINK FOR TO-247 WITH 1 CLIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39597 pcs | Data sheet | C Series |
| Category | Fans, Thermal Management | Width | 1.500" (38.10mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 350 LFM | Shape | Rectangular, Fins |
| Series | C | Power Dissipation @ Temperature Rise | 5.0W @ 60°C |
| Package Cooled | TO-247 | Other Names | C2470251AE |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 0.984" (25.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.710" (18.03mm) | Diameter | - |
| Detailed Description | Heat Sink TO-247 Aluminum 5.0W @ 60°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
