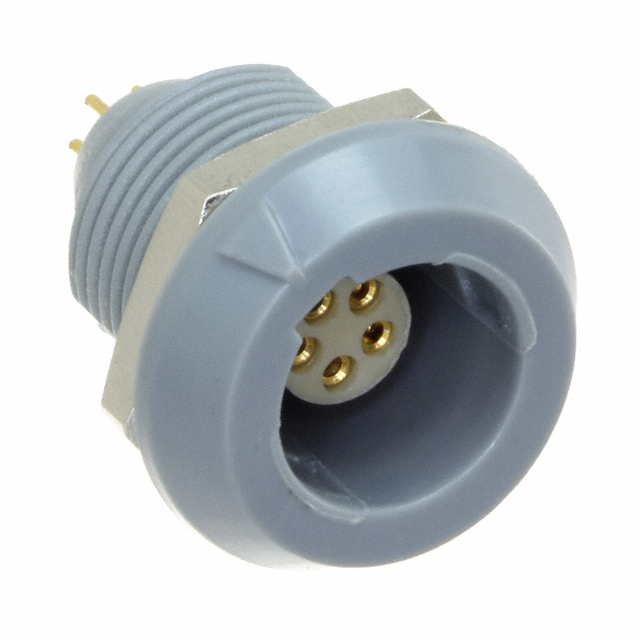

8P1P005210GRF01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8P1P005210GRF01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8P1P005210GRF01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8P1P005210GRF01 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN RCPT FMALE 5POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $5.865 | $5.332 | $5.199 | $4.799 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $4.533 | $4.133 | $3.866 | $3.546 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8P1P005210GRF01 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN RCPT FMALE 5POS GOLD SOLDER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8501 pcs | Data sheet | 8P1Pyyy210GRF01 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Termination | Solder | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Polyacrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) | Shell Finish | - |
| Series | QUIK-LOQ™ 8P1P | Packaging | Tray |
| Other Names | NOR1633 | Orientation | Keyed |
| Operating Temperature | -20°C ~ 120°C | Number of Positions | 5 |
| Mounting Type | Panel Mount, Through Hole | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP50 - Dust Protected |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 5 Position Circular Connector Receptacle, Female Sockets Solder Gold | Current Rating | 8A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 7.00µin (0.178µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Gray | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
