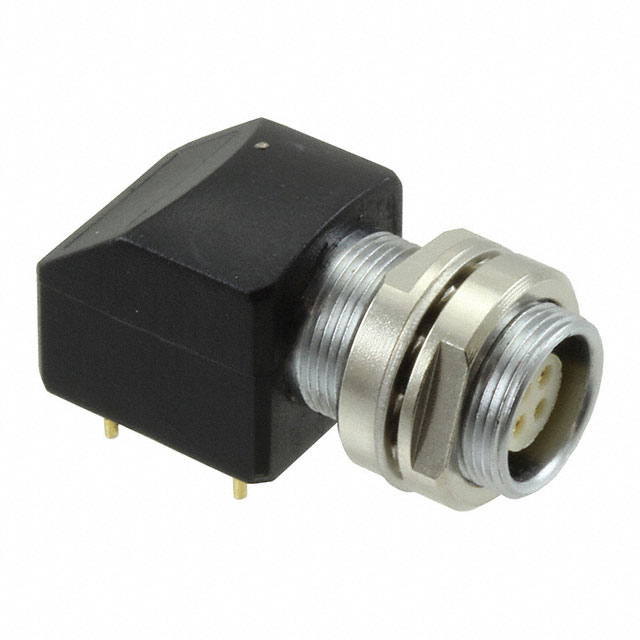

820BR04-213R001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 820BR04-213R001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 820BR04-213R001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 820BR04-213R001 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN RCPT FMALE 4POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | ||
|---|---|---|---|---|---|
| $14.313 | $12.92 | $12.378 | |||
| 60 pcs | 100 pcs | 260 pcs | |||
| $11.605 | $11.218 | $10.599 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 820BR04-213R001 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN RCPT FMALE 4POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3672 pcs | Data sheet | 820Byyy-213R001 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 280V |
| Termination | Solder | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | QUIK-LOQ™ 820B | Packaging | Tray |
| Other Names | NOR1504 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 200°C | Number of Positions | 4 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP50 - Dust Protected |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Gold | Current Rating | 7A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 7.00µin (0.178µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black, Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications |
