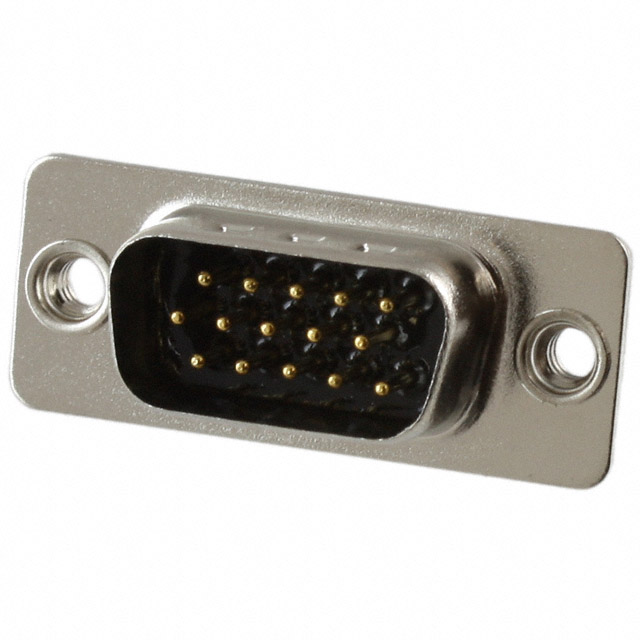

780-M15-103L011
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 780-M15-103L011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 780-M15-103L011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 780-M15-103L011 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB HD PLUG 15POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $2.732 | $2.618 | $2.39 | $2.276 | ||
| 180 pcs | 270 pcs | 540 pcs | 1080 pcs | ||
| $2.162 | $1.935 | $1.821 | $1.593 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 780-M15-103L011 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB HD PLUG 15POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24088 pcs | Data sheet | Seal-D® Brochure780-Mxx-103Lxx1 |
| Category | Connectors, Interconnects | Wire Gauge | 24-28 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | Seal-D 780-M | Packaging | Tray |
| Other Names | 780M15103L011 NOR1079 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Cable Side (4-40) |
| Features | Grounding Indents | Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
