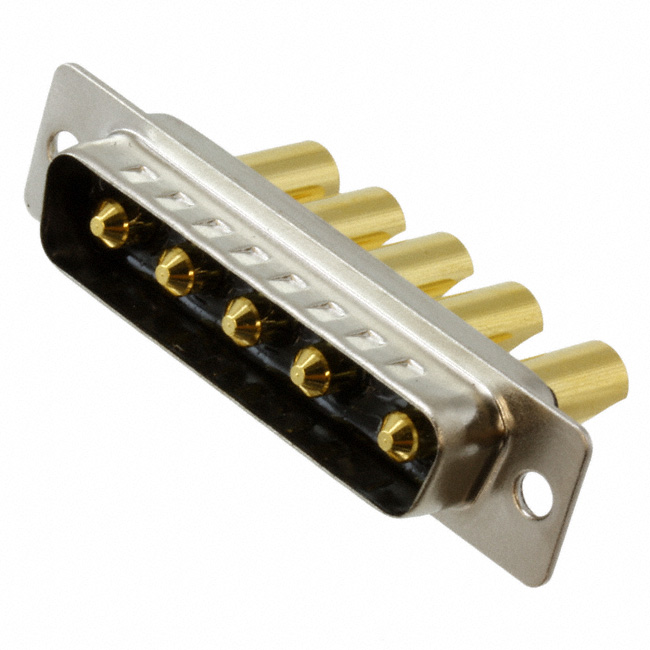

680S5W5103L201
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 680S5W5103L201 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 680S5W5103L201 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 680S5W5103L201 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB PLUG 5POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.068 | $4.608 | $4.492 | $4.147 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.916 | $3.571 | $3.34 | $3.064 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 680S5W5103L201 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB PLUG 5POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10301 pcs | Data sheet | Seal-D® Brochure680S5W5103Lyy1 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 | Shell Material, Finish | Steel, Nickel Plated |
| Series | Seal-D 680S | Packaging | Tray |
| Other Names | 680S5W5103L201-ND NOR1196 |
Operating Temperature | -55°C ~ 155°C |
| Number of Rows | 1 | Number of Positions | 5 (Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 5 (Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 20A | Contact Type | Power |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
