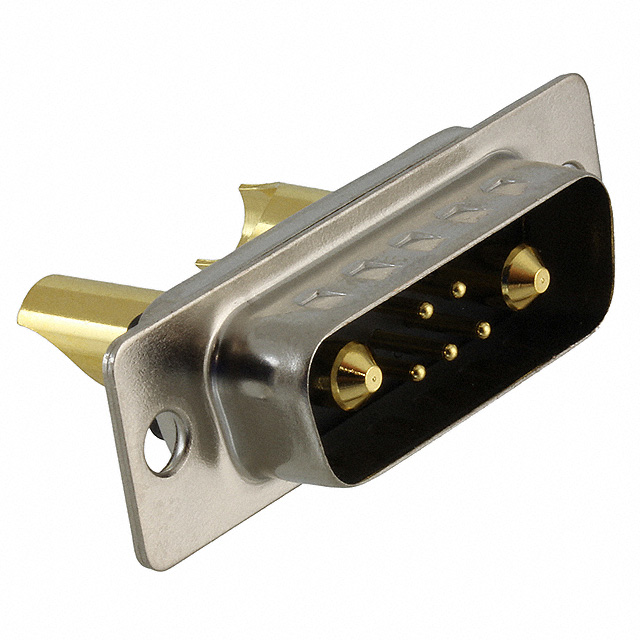

680M7W2103L401
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 680M7W2103L401 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 680M7W2103L401 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 680M7W2103L401 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB PLUG 7POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $3.104 | $2.97 | $2.70 | $2.565 | ||
| 160 pcs | 320 pcs | 560 pcs | 1040 pcs | ||
| $2.497 | $2.227 | $2.092 | $1.849 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 680M7W2103L401 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB PLUG 7POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20762 pcs | Data sheet | Power-D Sales Sheet680M7W2103Lx01 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 | Shell Material, Finish | Steel, Nickel Plated |
| Series | 680M | Packaging | Tray |
| Other Names | NOR1308 | Operating Temperature | -55°C ~ 155°C |
| Number of Rows | 2 | Number of Positions | 7 (5 + 2 Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 5A, 40A | Contact Type | Signal and Power |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
