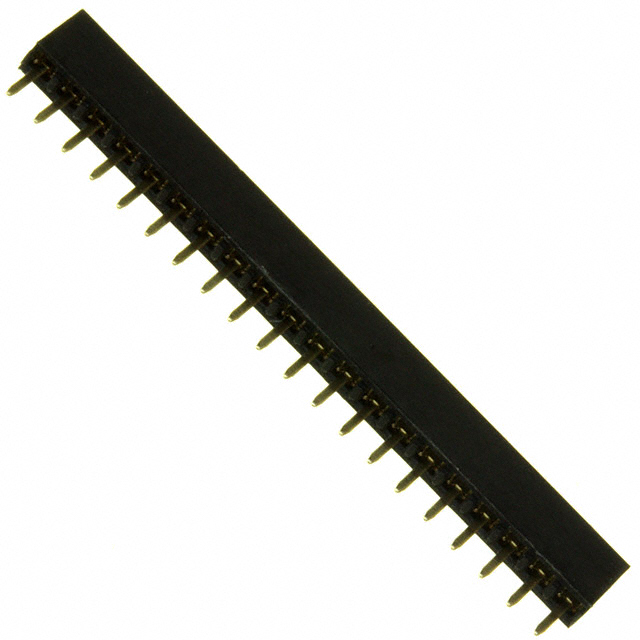

25632001RP2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 25632001RP2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 25632001RP2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 25632001RP2 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN RCPT 2MM VERT SGL ROW 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.473 | $1.238 | $1.179 | $1.002 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 25632001RP2 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN RCPT 2MM VERT SGL ROW 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37642 pcs | Data sheet | 2563yy01RP2 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | - |
| Series | 2563 | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | 2563S-20 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.169" (4.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.098" (2.50mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
