189-009-513R571

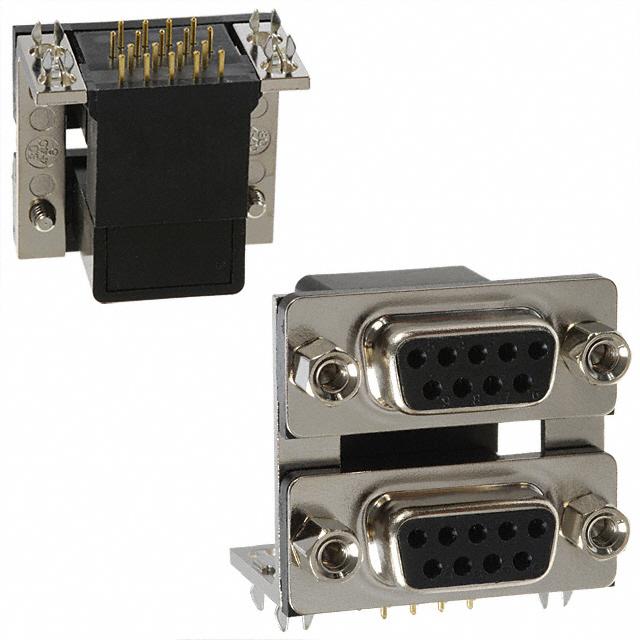

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 189-009-513R571 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 189-009-513R571 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 189-009-513R571 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB RCPT 9POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $2.677 | $2.565 | $2.342 | $2.231 | ||
| 135 pcs | 270 pcs | 540 pcs | 1035 pcs | ||
| $2.119 | $1.896 | $1.785 | $1.561 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 189-009-513R571 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22280 pcs | Data sheet | 189-yyy-513R571Backshell Reference Guide |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) | Shell Material, Finish | Steel, Nickel Plated |
| Series | 189 | Packaging | Tray |
| Other Names | 1009FFE 189009513R571 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2, 2 | Number of Positions | 9, 9 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyamide (PA9T), Nylon 9T | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Shielded | Detailed Description | 9, 9 Position D-Sub - Stacked Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | Stamped |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub - Stacked |
| Color | Black | Backset Spacing | 0.318" (8.08mm) |
