EMZJ160ADA101MF61G

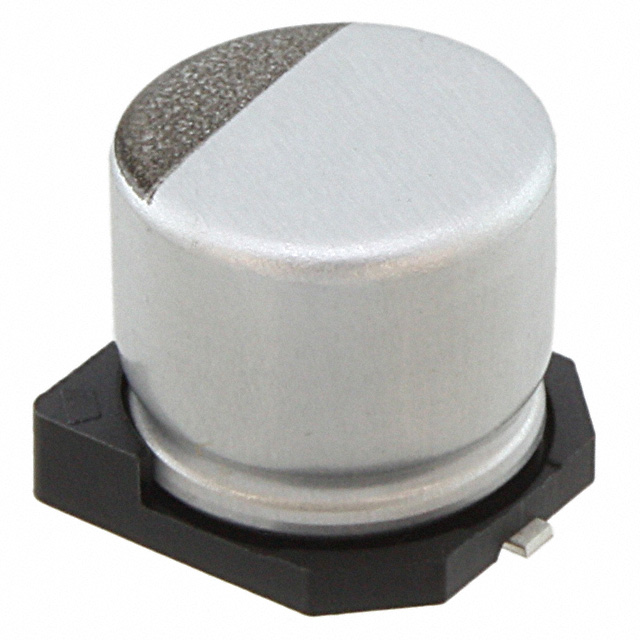

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EMZJ160ADA101MF61G with confidence from Components-World.HK, 1 Year Warranty
Dowload EMZJ160ADA101MF61G Details in PDFSee Product Specifications for product details.
Buy EMZJ160ADA101MF61G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EMZJ160ADA101MF61G |
|---|---|
| Manufacturer | Nippon Chemi-Con |
| Description | CAP ALUM 100UF 20% 16V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.23 | $0.163 | $0.107 | $0.08 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EMZJ160ADA101MF61G | Manufacturer | Nippon Chemi-Con |
|---|---|---|---|
| Description | CAP ALUM 100UF 20% 16V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 296945 pcs | Data sheet | MZJ Series |
| Category | Capacitors | Voltage - Rated | 16V |
| Tolerance | ±20% | Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | Series | Alchip™- MZJ |
| Ripple Current @ Low Frequency | 120mA @ 120Hz | Ripple Current @ High Frequency | 300mA @ 100kHz |
| Ratings | AEC-Q200 | Polarization | Polar |
| Packaging | Original-Reel® | Package / Case | Radial, Can - SMD |
| Other Names | 565-3656-6 | Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.272" (6.90mm) | ESR (Equivalent Series Resistance) | 260 mOhm @ 100kHz |
| Detailed Description | 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 260 mOhm @ 100kHz 2000 Hrs @ 105°C | Capacitance | 100µF |
| Applications | Automotive |
