ELXZ630ETD101MJC5S

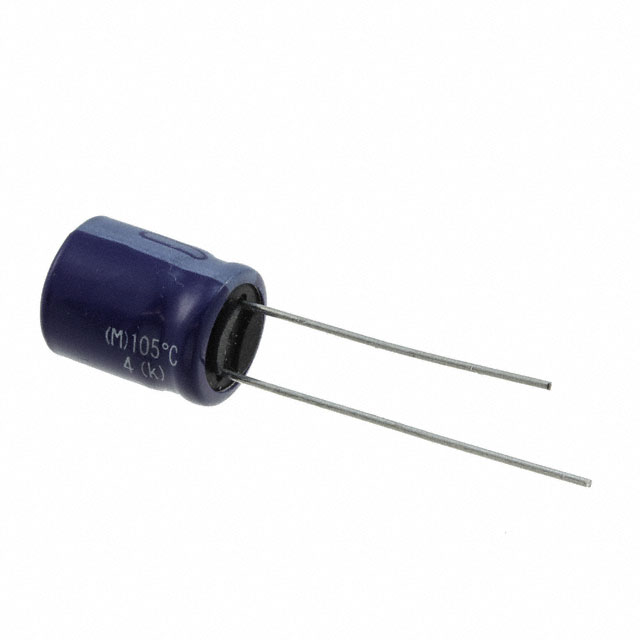

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELXZ630ETD101MJC5S with confidence from Components-World.HK, 1 Year Warranty
Dowload ELXZ630ETD101MJC5S Details in PDFSee Product Specifications for product details.
Buy ELXZ630ETD101MJC5S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELXZ630ETD101MJC5S |
|---|---|
| Manufacturer | Nippon Chemi-Con |
| Description | CAP ALUM 100UF 20% 63V RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | 1600 pcs | 2400 pcs | 4000 pcs | |
|---|---|---|---|---|---|
| $0.06 | $0.057 | $0.054 | $0.05 | ||
| 8000 pcs | 20000 pcs | 40000 pcs | 80000 pcs | ||
| $0.047 | $0.046 | $0.045 | $0.044 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELXZ630ETD101MJC5S | Manufacturer | Nippon Chemi-Con |
|---|---|---|---|
| Description | CAP ALUM 100UF 20% 63V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 441746 pcs | Data sheet | LXZ Series |
| Category | Capacitors | Voltage - Rated | 63V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.394" Dia (10.00mm) | Series | LXZ |
| Ripple Current @ Low Frequency | 216mA @ 120Hz | Ripple Current @ High Frequency | 540mA @ 100kHz |
| Ratings | AEC-Q200 | Polarization | Polar |
| Packaging | Tape & Box (TB) | Package / Case | Radial, Can |
| Other Names | 565-3747-2 565-3747-2-ND 565-3747-3 ELXZ630ETD101MJC5S-ND |
Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Lead Spacing | 0.197" (5.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance | 255 mOhms | Height - Seated (Max) | 0.551" (14.00mm) |
| ESR (Equivalent Series Resistance) | - | Detailed Description | 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C |
| Capacitance | 100µF | Applications | Automotive |
