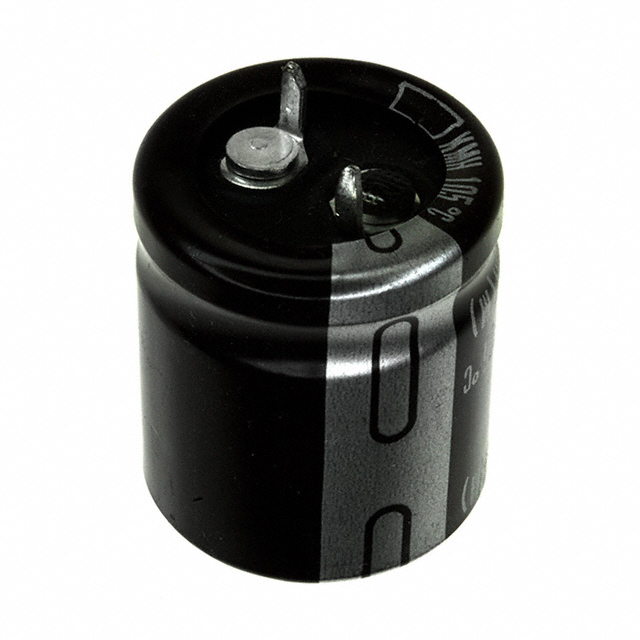

EKMH101VSN561MP25T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EKMH101VSN561MP25T with confidence from Components-World.HK, 1 Year Warranty
Dowload EKMH101VSN561MP25T Details in PDFSee Product Specifications for product details.
Buy EKMH101VSN561MP25T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EKMH101VSN561MP25T |
|---|---|
| Manufacturer | Nippon Chemi-Con |
| Description | CAP ALUM 560UF 20% 100V SNAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.968 | $0.783 | $0.598 | $0.455 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.398 | $0.384 | $0.37 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EKMH101VSN561MP25T | Manufacturer | Nippon Chemi-Con |
|---|---|---|---|
| Description | CAP ALUM 560UF 20% 100V SNAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95368 pcs | Data sheet | KMH Series Bulletin |
| Category | Capacitors | Voltage - Rated | 100V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.866" Dia (22.00mm) | Series | KMH |
| Ripple Current @ Low Frequency | 1.05A @ 120Hz | Ripple Current @ High Frequency | 1.26A @ 100kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Bulk | Package / Case | Radial, Can - Snap-In |
| Other Names | 565-2919 EKMH101VSN561MP25N |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 16 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | 0.394" (10.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.984" (25.00mm) |
| ESR (Equivalent Series Resistance) | 444 mOhm @ 120Hz | Detailed Description | 560µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 444 mOhm @ 120Hz 2000 Hrs @ 105°C |
| Capacitance | 560µF | Applications | General Purpose |
