EGPD800ELL681ML25H

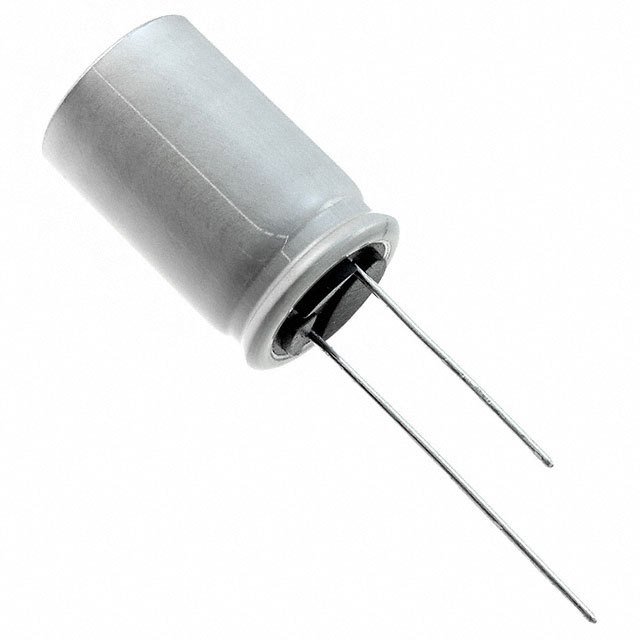

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EGPD800ELL681ML25H with confidence from Components-World.HK, 1 Year Warranty
Dowload EGPD800ELL681ML25H Details in PDFSee Product Specifications for product details.
Buy EGPD800ELL681ML25H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EGPD800ELL681ML25H |
|---|---|
| Manufacturer | Nippon Chemi-Con |
| Description | CAP ALUM 680UF 20% 80V RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.057 | $0.855 | $0.653 | $0.498 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.436 | $0.42 | $0.404 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EGPD800ELL681ML25H | Manufacturer | Nippon Chemi-Con |
|---|---|---|---|
| Description | CAP ALUM 680UF 20% 80V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79491 pcs | Data sheet | GPD Series |
| Category | Capacitors | Voltage - Rated | 80V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.630" Dia (16.00mm) | Series | GPD |
| Ripple Current @ Low Frequency | 1.764A @ 120Hz | Ripple Current @ High Frequency | 2.94A @ 100kHz |
| Ratings | AEC-Q200 | Polarization | Polar |
| Packaging | Bulk | Package / Case | Radial, Can |
| Other Names | 565-3820 | Operating Temperature | -40°C ~ 135°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Lead Spacing | 0.295" (7.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.043" (26.50mm) | ESR (Equivalent Series Resistance) | 38 mOhm @ 100kHz |
| Detailed Description | 680µF 80V Aluminum Electrolytic Capacitors Radial, Can 38 mOhm @ 100kHz 2000 Hrs @ 135°C | Capacitance | 680µF |
| Applications | Automotive |
